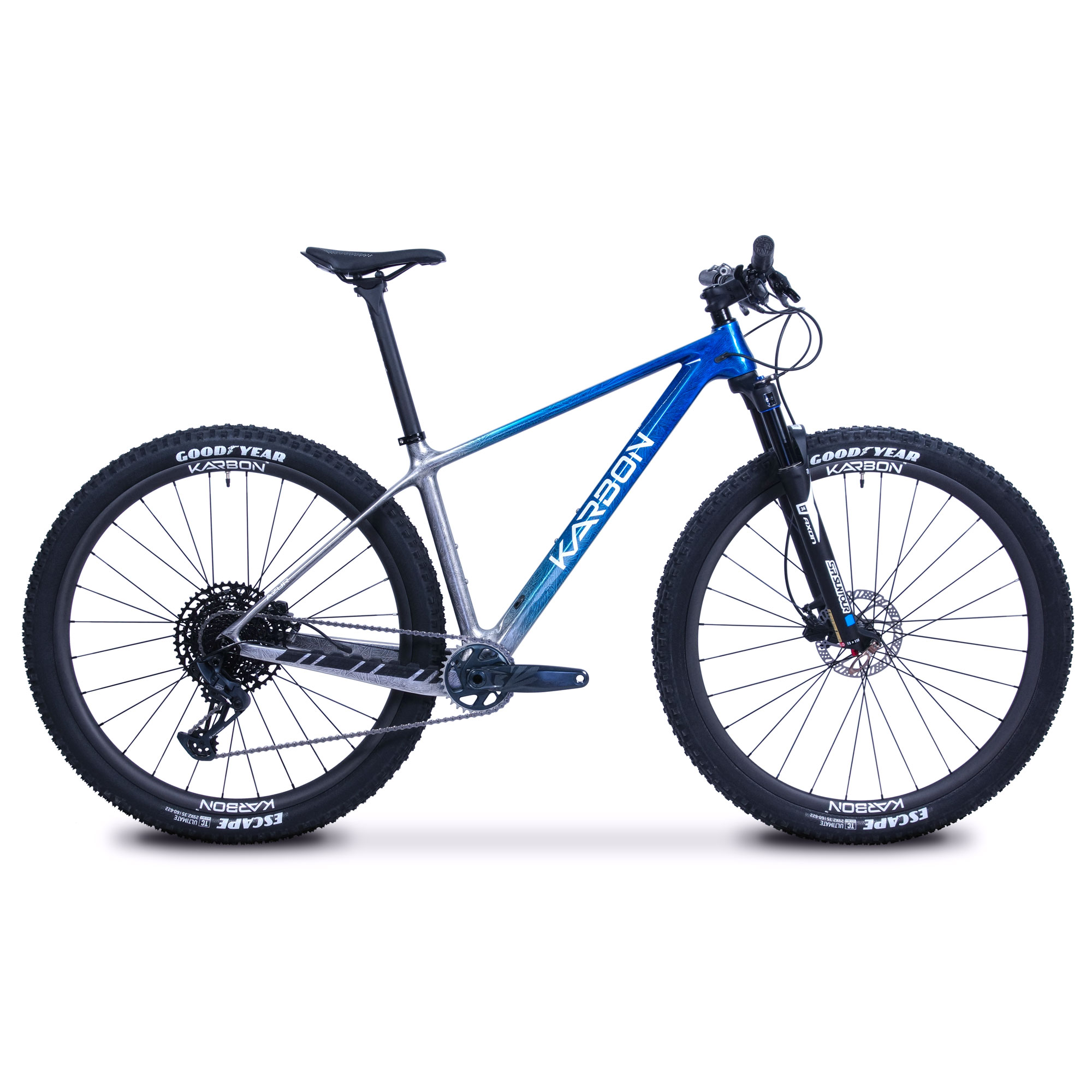

Azur S

$4,249.00

Features:

Spec	Description
Carbon Fiber Parts	Frame, wheels and seatpost
Wheel Size	29"
Front Travel	100mm
Weight	23 lbs / 10.45 kg (M)

Azur S is a thoroughbred XC hardtail racing bike with modern geometry fit for today’s tougher race courses. Its light weight and razor sharp handling make it the perfect bike for navigating singletracks and putting power down when trails point upward. It features our incredibly stiff yet super lightweight hardtail carbon fiber frame, state of the art front suspension technology courtesy of the latest race-ready SR Suntour AXON ELITE 34 fork. The drivetrain features the extremely durable and versatile SRAM GX Eagle system which combines greater durability and performance while maintaining a significant weight advantage over other drivetrains. The braking system features powerful and highly adjustable hydraulic Tektro HD-M285 brakes mated to 160mm rotors. Azur S also features our Karbon 2933 carbon fiber wheels with asymmetric rim design and 33mm outer width (26mm inner width) mated to Goodyear Peak cross country tubeless tires. Of course, Azur S wouldn’t be a proper lightweight elite XC racing bike without our carbon fiber seatpost, which weighs a mere 230g / 8oz (including hardware). All these state of the art specs will be at your fingertips through our sleek and lightweight Karbon MTB Carbon Fiber Flat Handlebar.

With the Karbon Azur S, you will be able to tackle the most challenging race courses, climb the steepest uphills and maybe win a few podiums along the way!

Azur S Technical Specifications

Part	Description

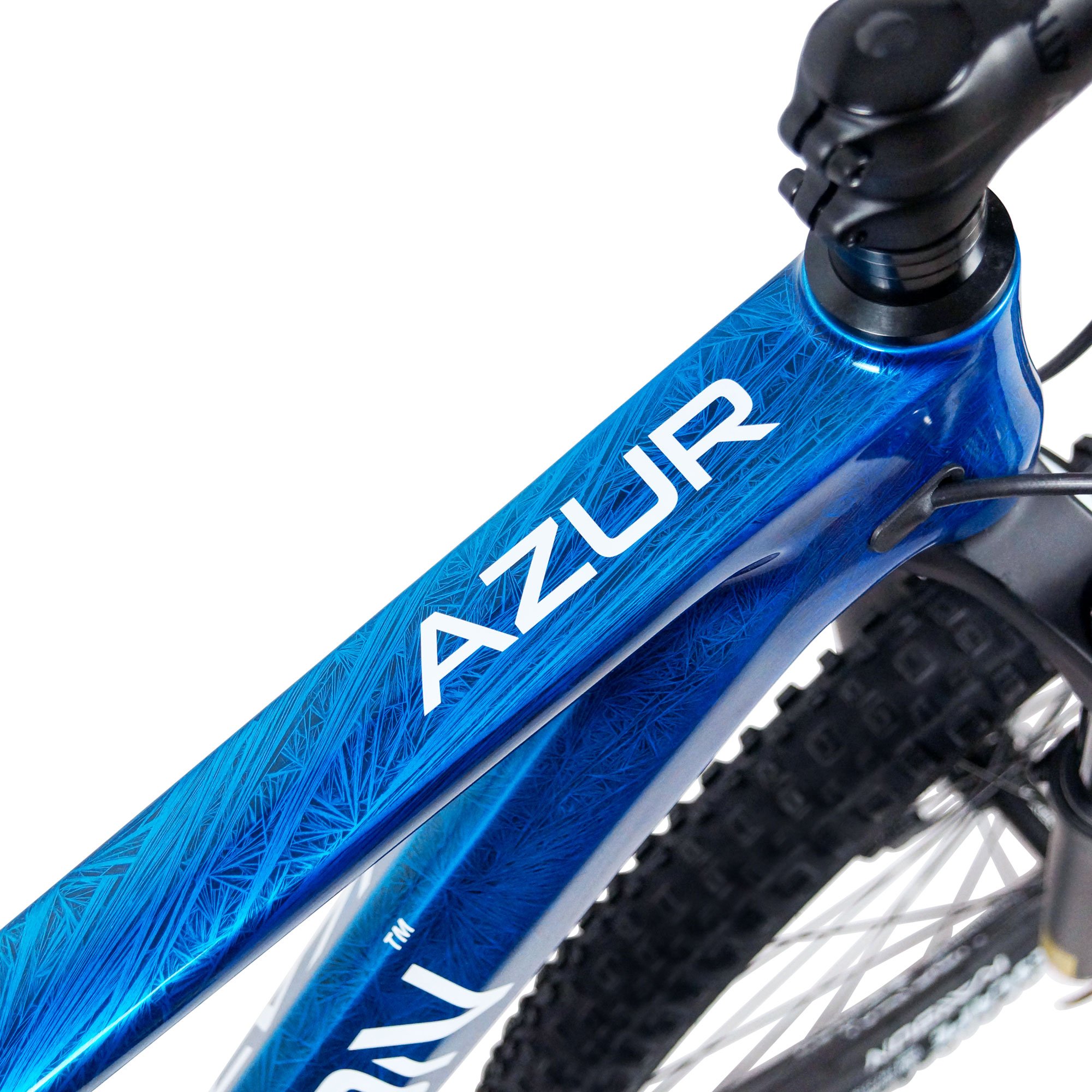

Frame	High modulus carbon fiber boost frame with internal cable routing, seatpost diameter 27.2mm (31.8 seat post clamp), Boost 148mm
Fork	SR Suntour AXON34 RLRC-PCS, Boost 15x110 Q-LOC Thru Axle, 100mm Travel, with lockout lever

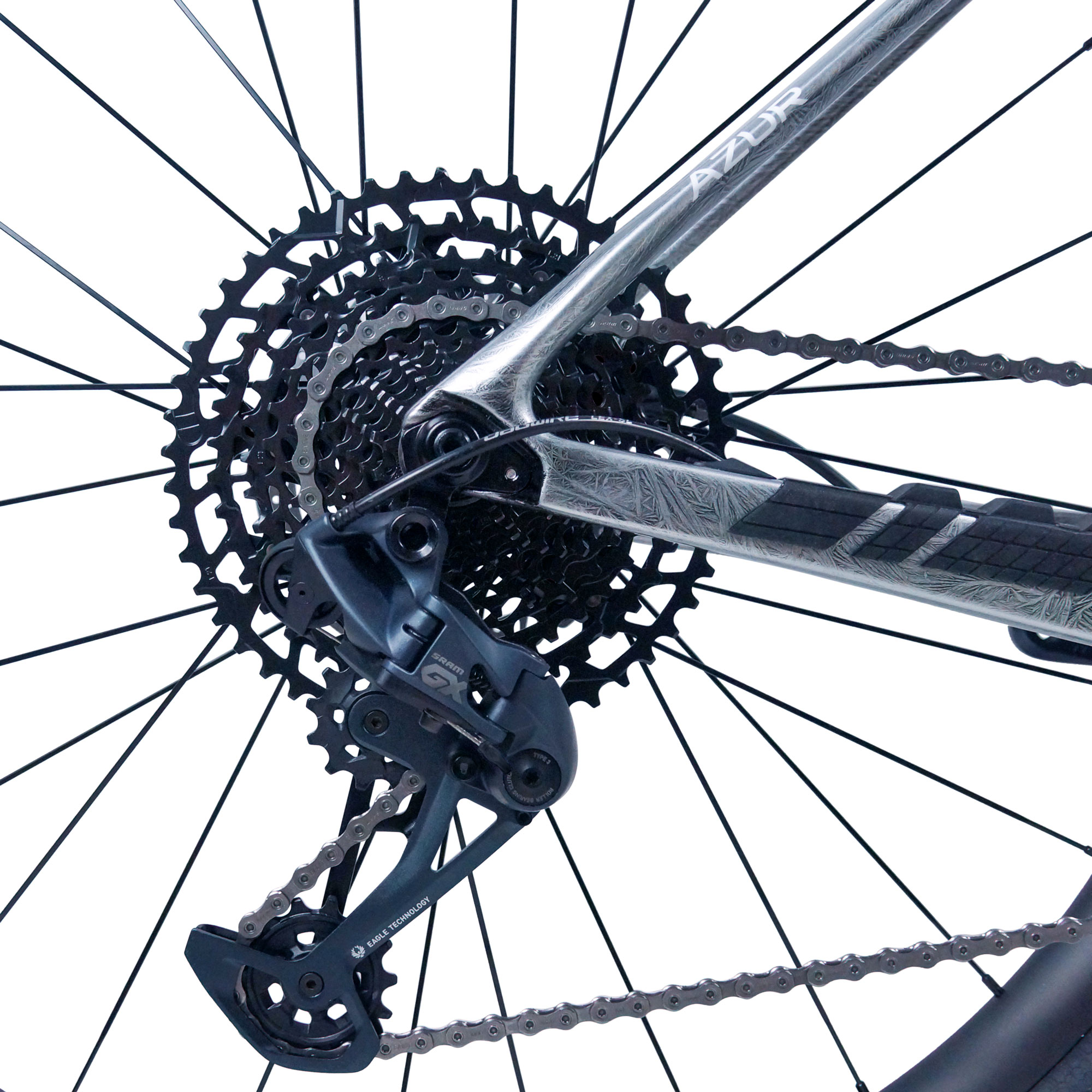

Rear Derailleur	SRAM GX Eagle 12 speed
Cassette	SRAM Eagle PG-1230 11-50 12 Speed
Chain	SRAM NX Eagle, 12 Speed
Shifters	SRAM GX Eagle Trigger 12 speed w Discrete Clamp

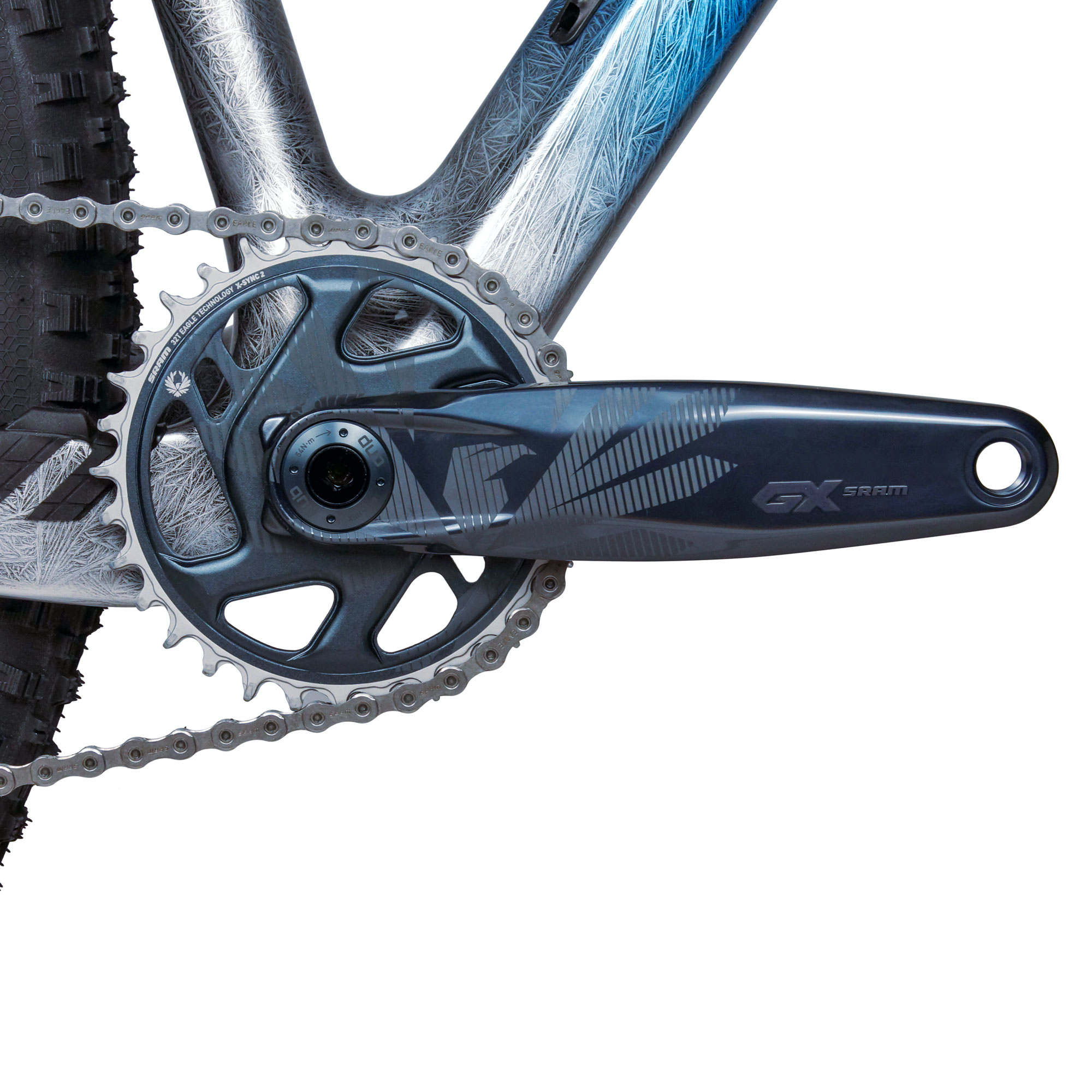

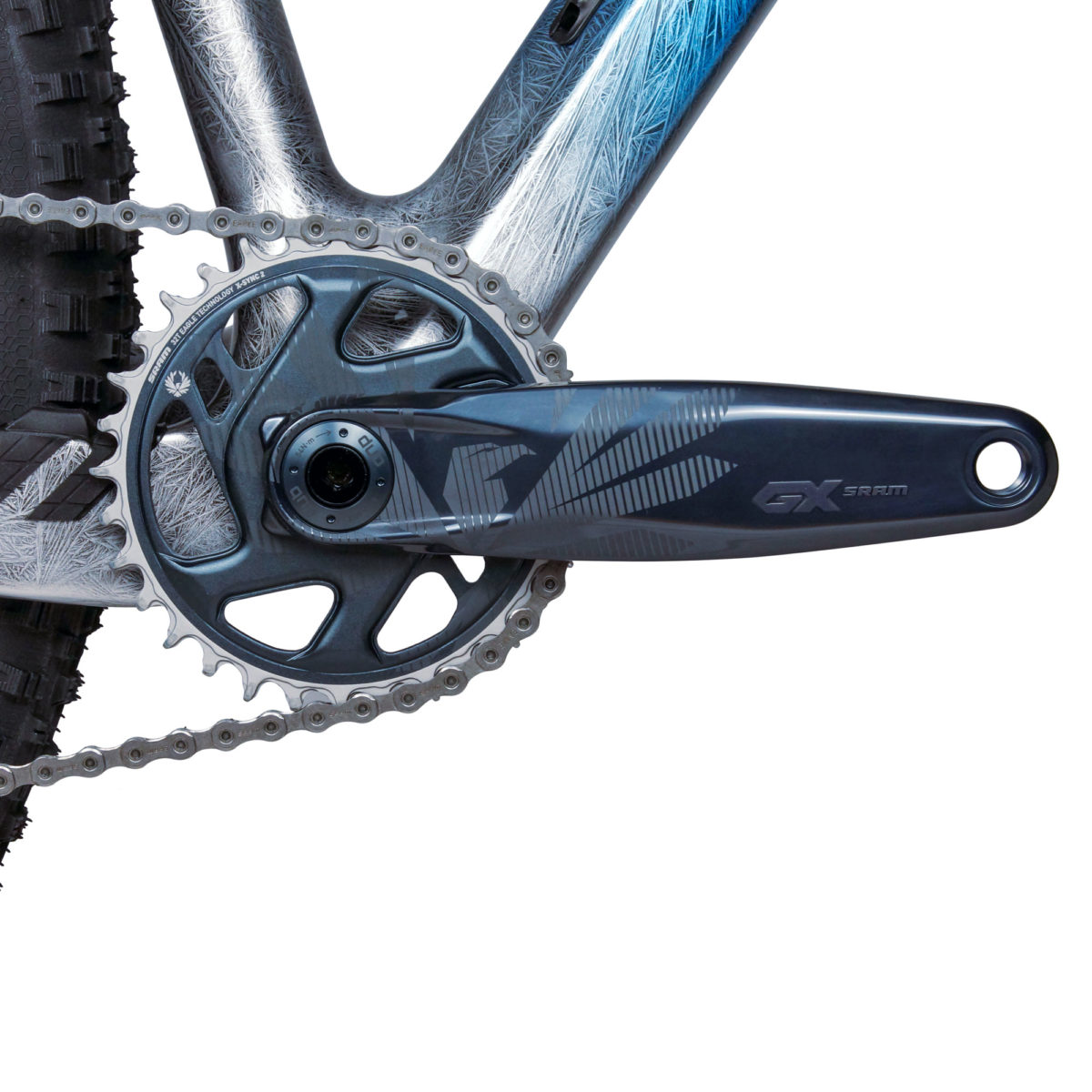

Crankset	SRAM GX Eagle Boost 148, 52mm chainline, DUB, 12 speed, 175mm length, 32T X-SYNC 2 Chainring
Max chainring size	36T
Bottom bracket	SRAM DUB, PressFit 92mm

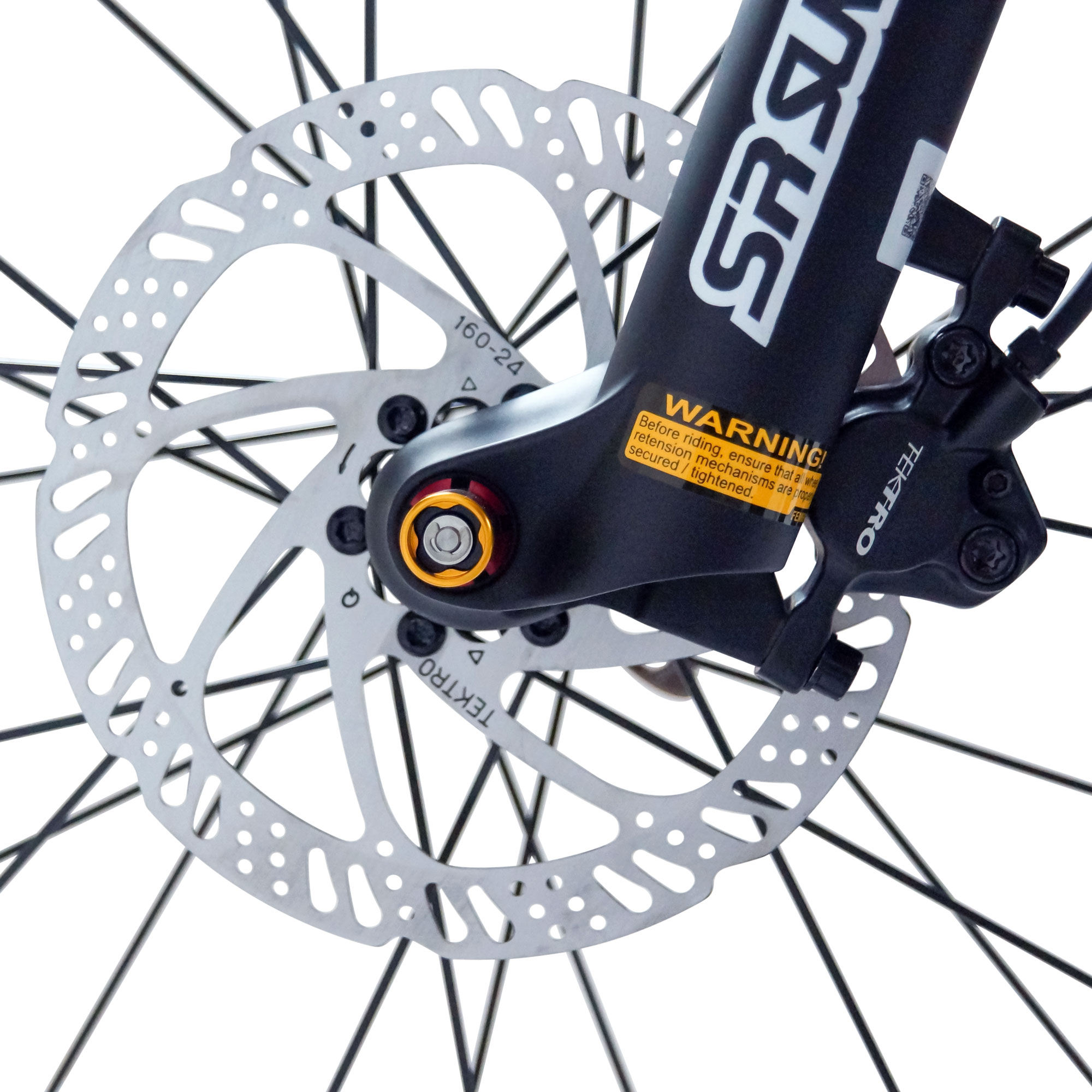

Brakes	Tektro HD-M285 dual piston hydraulic disc brakes, 2 fingers lever

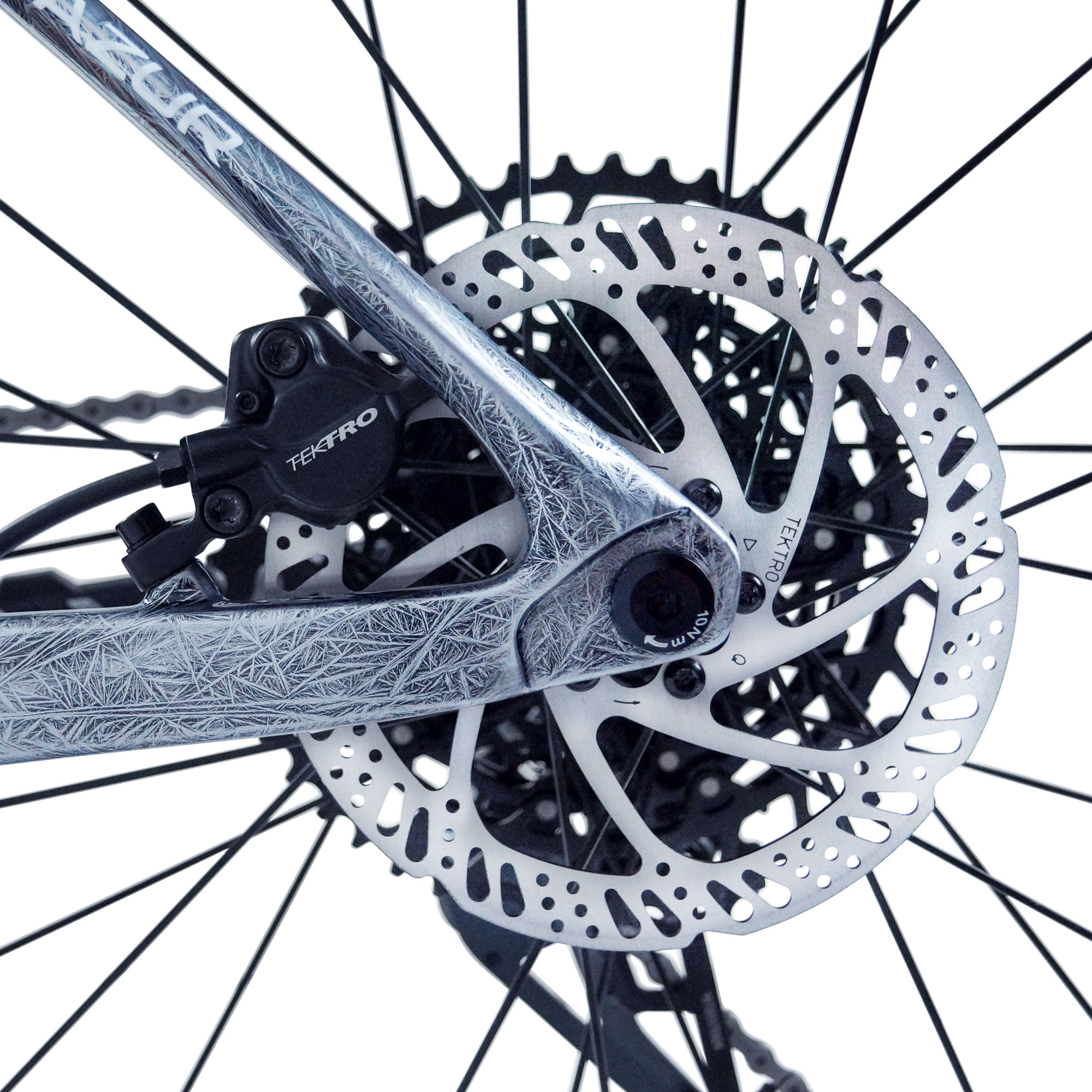

Brake Rotors	Tektro TR-53 6-bolt, 1.8mm thick, 160mm

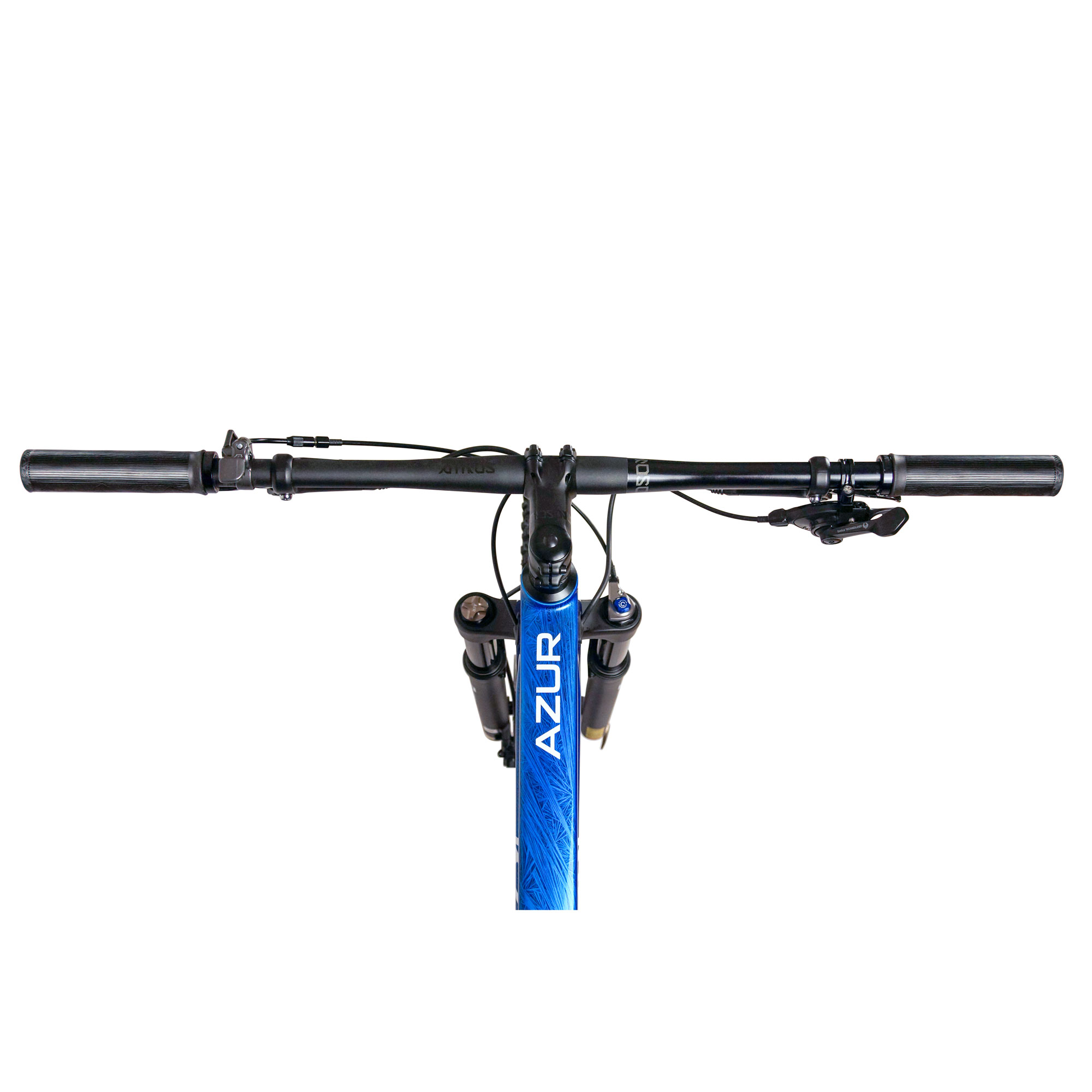

Handlebar	KARBON XC flat handlebar, carbon fiber, 31.8mm, 750mm width, 9 degree backsweep
Stem	SRAM ATMOS 7K 31.8mm Clamp, +/- 6 degree rise/drop, 70mm Length 1-1/8 Steerer Bead
Grips	Truvativ Descendant Black Single Locking 133
Front Wheel	KARBON XC 2933 Carbon Fiber, Asymetric Design, 33mm outer width (26mm inner width), Tubeless Ready, 6-bolt, Boost 110 mm, 15mm thru axle
Rear Wheel	KARBON XC 2933 Carbon Fiber, Asymetric Design, 33mm outer width (26mm inner width), Tubeless Ready, 6-bolt, SRAM XD driver, Boost 148 mm, 12mm thru axle
Front Tire	Goodyear Peak SL Race, Tubeless Complete, 120 TPI casing + M:Wall, XC Race compound, 29x2.25
Rear Tire	Goodyear Peak SL Race, Tubeless Complete, 120 TPI casing + M:Wall, XC Race compound, 29x2.25
Seat Post	KRABON 27.2mm x 400mm carbon fiber seatpost
Saddle	Karbon Bikes House Saddle
Weight	23 lbs / 10.45 kg (Size L)
Weight Limit	300 lbs. / 136 kgs. total weight limit, including bicycle, rider and cargo)

Any of the above product information is subject to change without notice. Due to supply chain issues, we reserve the right to substitute components at any time without notice.

Karbon Azur Geometry Illustration

Measured Area	Small Measurements	Medium Measurements	Large Measurements
	S	M	L
Seatpost Insert Length	180mm	180mm	200mm
Reach	405mm	430mm	453mm
Top Tube Length, Horizontal	570mm	596mm	622mm
Stack	599mm	604mm	613mm
Wheelbase	1,102mm	1,129mm	1,156mm
Chainstay Length	438mm	438mm	438mm
Front Center	669mm	696mm	723mm
BB Drop	60mm	60mm	60mm
BB Height	313mm	313mm	313mm
Seat Tube Angle	74.6°	74.6°	74.6°
Head Tube Angle	69°	69°	69°
Seat Tube Length	393mm	418mm	458mm
Head Tube Length	90mm	95mm	105mm
Bike Standover Heigh	704mm	723mm	753mm
Fork Rake/Offset	44mm	44mm	44mm
Fork Length, Full	506mm	506mm	506mm
Trail	88mm	88mm	88mm

Size	Rider Height
S	5.1" - 5.5" / 156cm - 165cm
M	5'5" -5'9" / 165cm - 175cm
L	5'9" - 6'1" / 175cm - 185cm

When choosing a frame, height is only one of several factors to consider. The other two equally important factors are the type of terrain and riding style. A larger size frame offers more stability, and gives you more room to move without upsetting the ride dynamics of the bike. A larger frame size will have a longer wheelbase putting the front wheel further ahead and making the bike feel more planted at higher speeds. On the other hand, a smaller size frame provides a more playful riding style and will feel more agile in tight corners.
