PowerLine 2 90

$7,999.00

Features:

Spec	Description
Carbon Fiber Parts	Frame, wheels and handlebar
Wheel Size	29"
Front Travel	160mm
Rear Travel	150mm
Motor	Bafang M510, 95 Nm / 70 ft-lb
Battery	Bafang 720 Wh 48V Battery

The PowerLine 2 – 90 is your gateway to next-level enduro riding, featuring SRAM’s groundbreaking mechanical Eagle T-Type 12-speed drivetrain. The RockShox ZEB Select fork with 160mm of controlled travel and Super Deluxe Ultimate shock deliver trail dominance, balancing precision and durability. Powerful braking comes from Magura MT5 4-piston brakes paired with oversized rotors, ensuring unmatched stopping power. Built on a high modulus Toray T800 carbon frame, this setup is primed for riders seeking mechanical reliability and exceptional value without sacrificing performance.

WE GOT YOU COVERED

Money Back Guarantee

We are confident that that you will enjoy riding your Karbon bike as much as we enjoyed making it for you. However, if for whatever reason you are not 100% satisfied, just contact us and we will make it right.

Lifetime Warranty

All Karbon frames and wheels are covered for life against damage caused manufacturing defects in materials or workmanship for the original owner. See our Warranty page for details.

Back on the Trail Crash Replacement

All Karbon bikes are covered under our Back on the Tail Crash Replacement program. In the event of a crash or non-warranty situation, we’ll get you back on the trail with a discounted replacement price.

PowerLine 2 90 Technical Specifications

Part	Description
Frame	High modulus Toray T800 carbon fiber frame with Virtual Pivot Suspension (VPS), internal cable routing, 150mm travel
Fork	RockShox ZEB Select, 15x110 Boost, 160mm travel, tapered steerer, 44mm offset
Shock	RockShox Super Deluxe Ultimate RC2T (210x55) Standard Mount
Rear Derailleur	SRAM 90 Eagle T-Type 12 speed
Shifters	SRAM 90 Eagle T-Type, Single Click
Cassette	SRAM XS 1275 Eagle T-Type, 10-52t, 12 speed
Chain	SRAM GX Eagle T-Type Flattop Chain, 12 Speed
Crankset	Bafang 170mm length
Chainring	SRAM Eagle T-Type Transmission e-MTB Chainring, 32T
Motor	Bafang M510, magnesium motor body with speed and torque sensors, 95 Nm (70 ft-lb) max assist up to 20 mph (32 km/h)
Battery	Bafang 720Wh 48V removable
Charger	Bafang 2A, 110-220V
Display	Bafang DP C245, 1.9”TFT display with Bluetooth
Brakes	Magura MT5 hydraulic disc brakes with 4 piston calipers
Brake Rotors	Magura MDR-C, 6-bolt, front 220mm, rear 203mm
Handlebar	KARBON AM carbon fiber handlebar, 35mm, 800mm width, 5 degree upsweep, 9 degree backsweep, 25mm rise
Stem	Truvativ Stem Descendant, 0mm Rise, 35mm clamp, 50mm Length

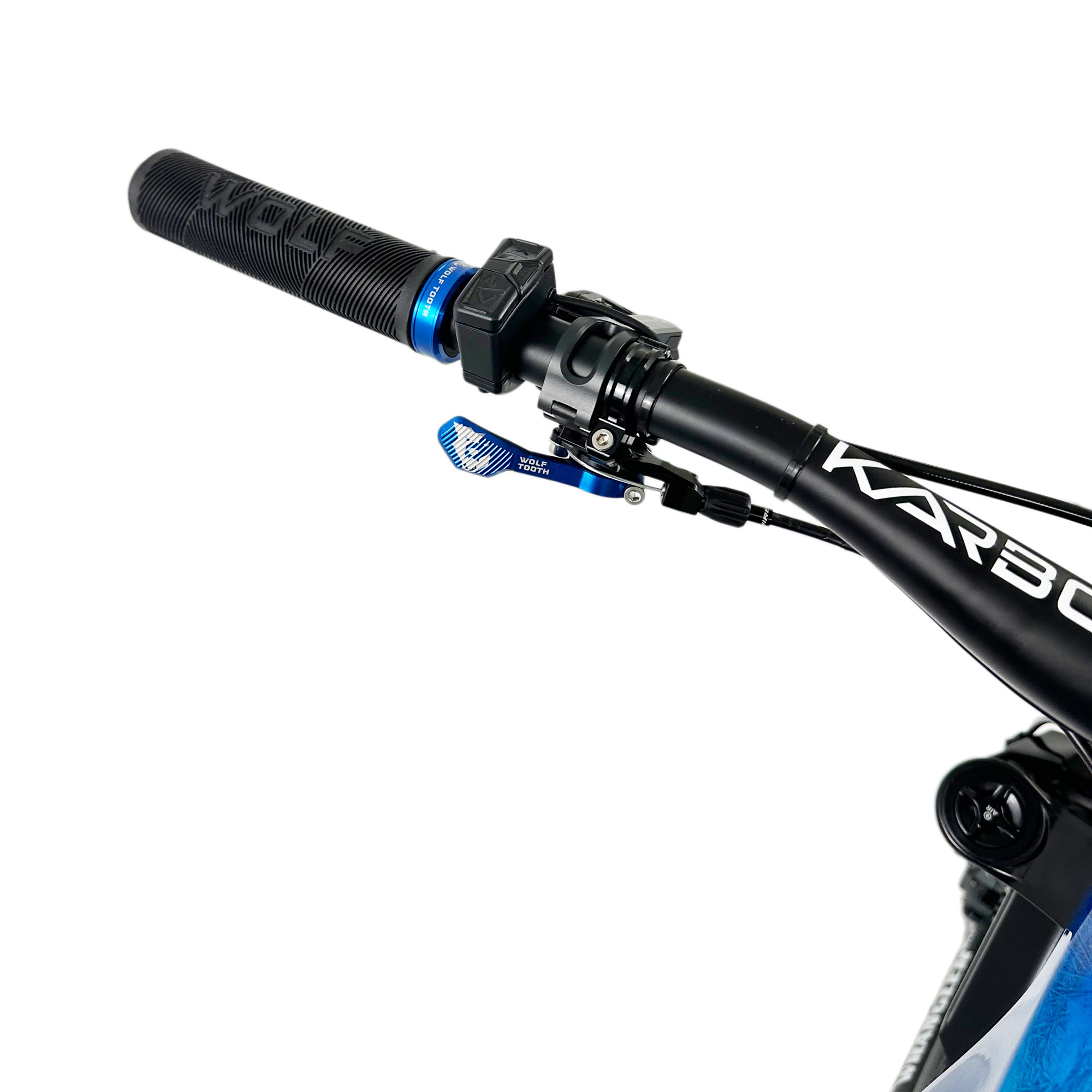

Grips	Wolf Tooth Lock On Grips
Front Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, Boost 110 mm, 15mm thru axle
Rear Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, SRAM XD driver, Boost 148 mm, 12mm thru axle
Front Tire	Goodyear Wrangler MTF, 29x2.60
Rear Tire	Goodyear Wrangler MTR, 29x2.40
Seat Post	TranzX Kitzuma, Size M: 31.6mm/125mm/Internal; Size L: 31.6mm/150mm/Internal
Saddle	Karbon Bikes House Saddle
Weight	51 lbs. / 23 kgs. (Size M)
Weight Limit	300 lbs. / 136 kgs. total weight limit, including bicycle, rider and cargo)

Any of the above product information is subject to change without notice. Due to supply chain and tariffs issues, we reserve the right to substitute components at any time without notice.

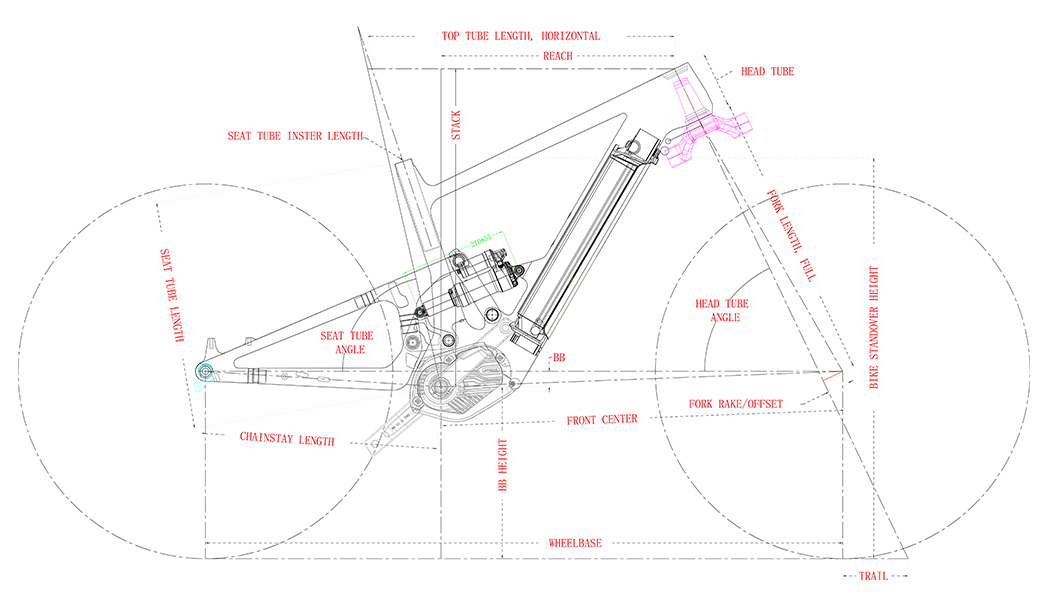

Karbon PowerLine 2 Geometry

Measured Area	Medium Measurements	Large Measurements
	M	L
Seatpost Insert Length	180mm	200mm
Reach	455mm	480mm
Top Tube Length, Horizontal	599mm	626mm
Stack	619mm	628mm
Wheelbase	1246mm	1274mm
Chainstay Length	460mm	460mm
Front Center	783mm	813mm
BB Drop	27mm	27mm
BB Height	340mm	340mm
Seat Tube Angle	77°	77°
Head Tube Angle	64°	64°
Seat Tube Length	445mm	480mm
Head Tube Length	110mm	120mm
Bike Standover Heigh	786mm	800mm
Fork Rake/Offset	44mm	44mm
Fork Length, Full	572mm	572mm
Trail	128mm	128mm

Size	Rider Height
L	5'10" - 6'2" / 178cm - 189cm
M	5'5" -5'10" / 165cm - 177cm

When choosing a frame, height is only one of several factors to consider. The other two equally important factors are the type of terrain and riding style. A larger size frame offers more stability, and gives you more room to move without upsetting the ride dynamics of the bike. A larger frame size will have a longer wheelbase putting the front wheel further ahead and making the bike feel more planted at higher speeds. On the other hand, a smaller size frame provides a more playful riding style and will feel more agile in tight corners.
