Stampede GX

Name: Stampede GX
SKU: 505
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

$5,899.00

Features:

Spec	Description
Carbon Fiber Parts	Frame, wheels and handlebar
Wheel Size	29"
Front Travel	170mm
Rear Travel	160mm
Weight	32 lbs / 14.50 kg (L)

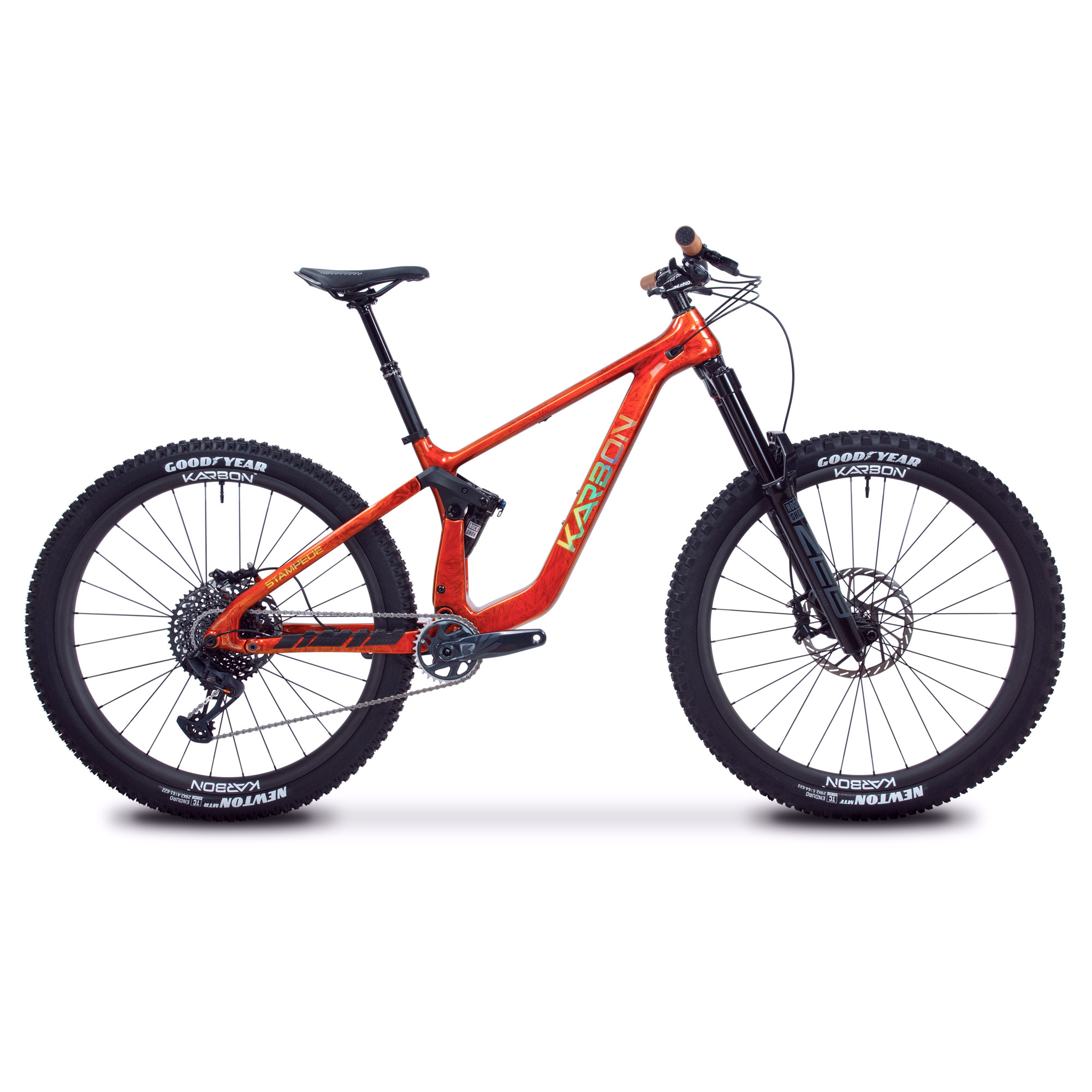

The Karbon™ Stampede GX gives you confidence when shredding gnarly downhills as fast as humanly possible, while providing you with the uphill climbing efficiency you need to keep you going all day.

It features our incredibly stiff yet lightweight enduro carbon fiber frame, state of the art suspension technology courtesy of the latest RockShox ZEB fork and Deluxe Ultimate rear shock. With 160mm of progressive rear travel, Stampede GX features optimal anti-squat and anti-rise kinematics thanks to the highly-tunable tried and tested Horst Link/4-bar suspension design. The result is an enduro bike that paddles with the efficiency of an XC bike.

The drivetrain features the extremely durable and versatile SRAM GX Eagle system which combines greater durability and performance while maintaining a significant weight advantage over other drivetrains. The braking system features powerful and highly adjustable hydraulic 4-piston Magura brakes mated to 220mm front and 203mm rear rotors. Stampede GX also features our Karbon 2940 carbon fiber wheels with asymmetric rim design and 40mm outer width (34mm inner width) mated to Goodyear Newton Enduro tubeless front and rear specific tires. All these state of the art specs will be at your fingertips through the our stiff and lightweight Karbon MTB 35 carbon fiber handlebar.

With the Karbon Stampede GX, you will be able to tackle the wildest terrain without a flinch!

WE GOT YOU COVERED

Money Back Guarantee

We are confident that that you will enjoy riding your Karbon bike as much as we enjoyed making it for you. However, if for whatever reason you are not 100% satisfied, just contact us and we will make it right.

Lifetime Warranty

All Karbon frames and wheels are covered for life against damage caused manufacturing defects in materials or workmanship for the original owner. See our Warranty page for details.

Back on the Trail Crash Replacement

All Karbon bikes are covered under our Back on the Tail Crash Replacement program. In the event of a crash or non-warranty situation, we’ll get you back on the trail with a discounted replacement price.

Stampede GX Technical Specifications

Part	Description

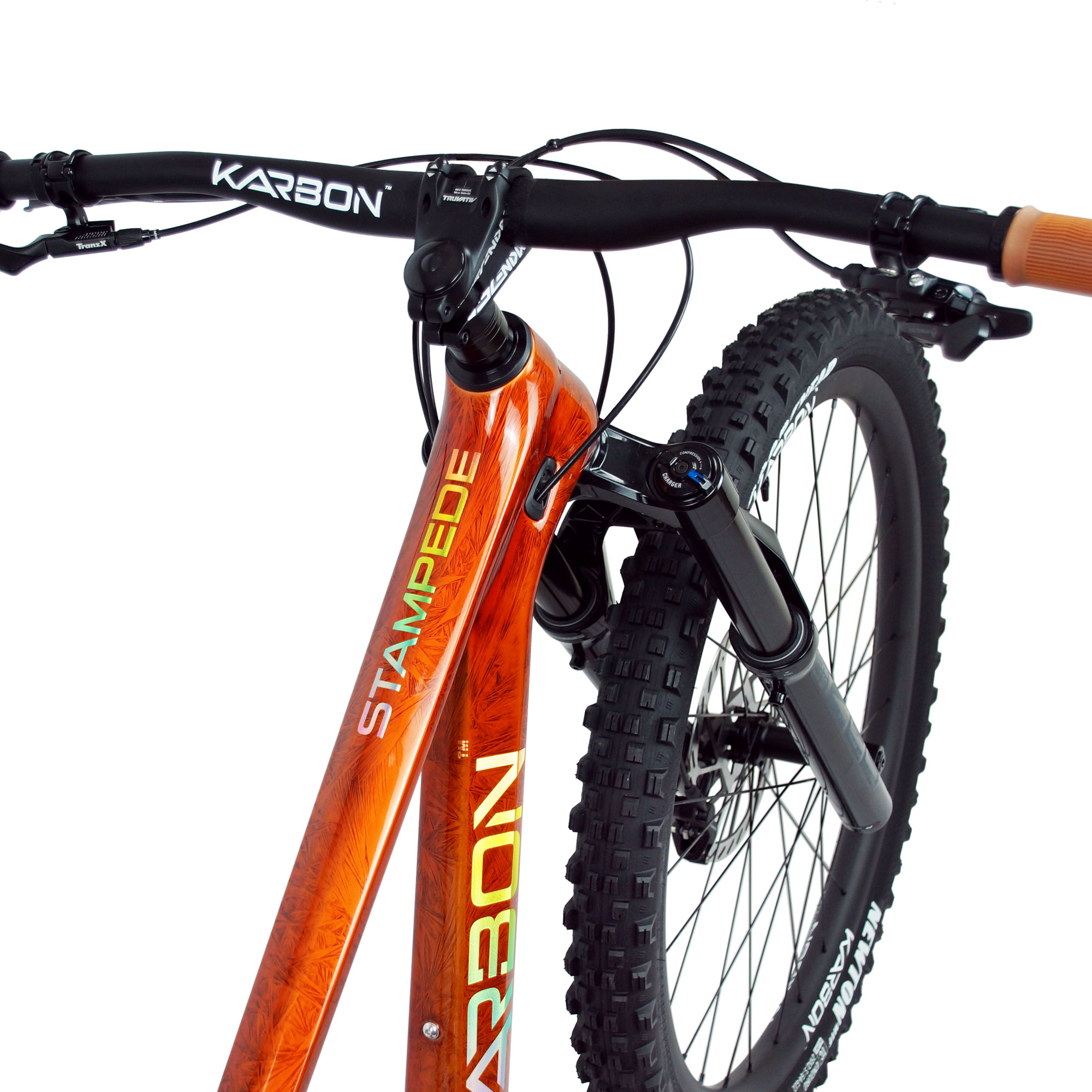

Frame	High modulus carbon fiber boost frame with internal cable routing, seatpost diameter 31.6mm (34.9 seat post clamp), Boost 148mm, 160mm travel
Fork	RockShox ZEB Select, Charger RC damper, DebonAir+ dual position air spring, 15x110 Boost, Maxle Stealth, 170mm travel, tapered steerer, 44mm offset

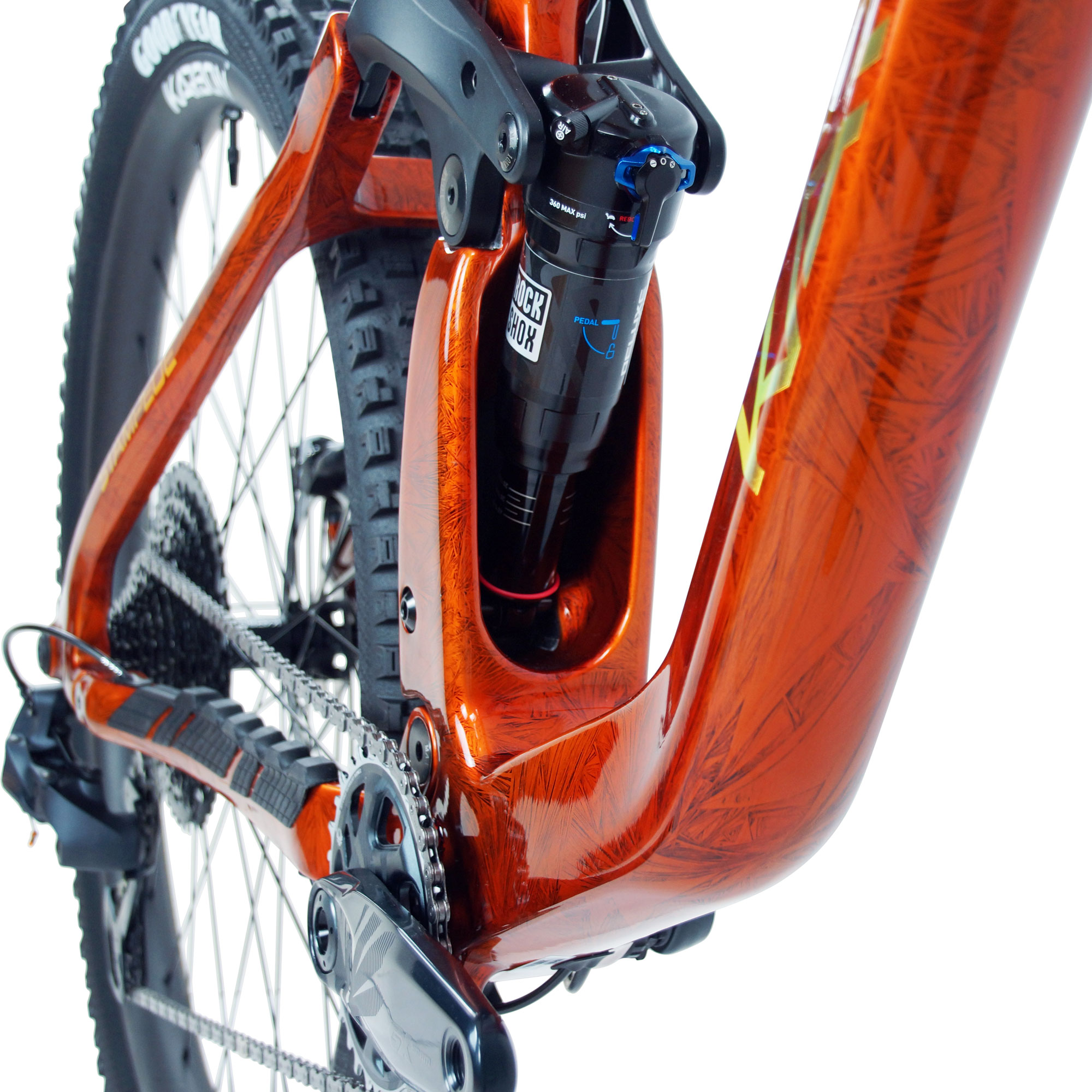

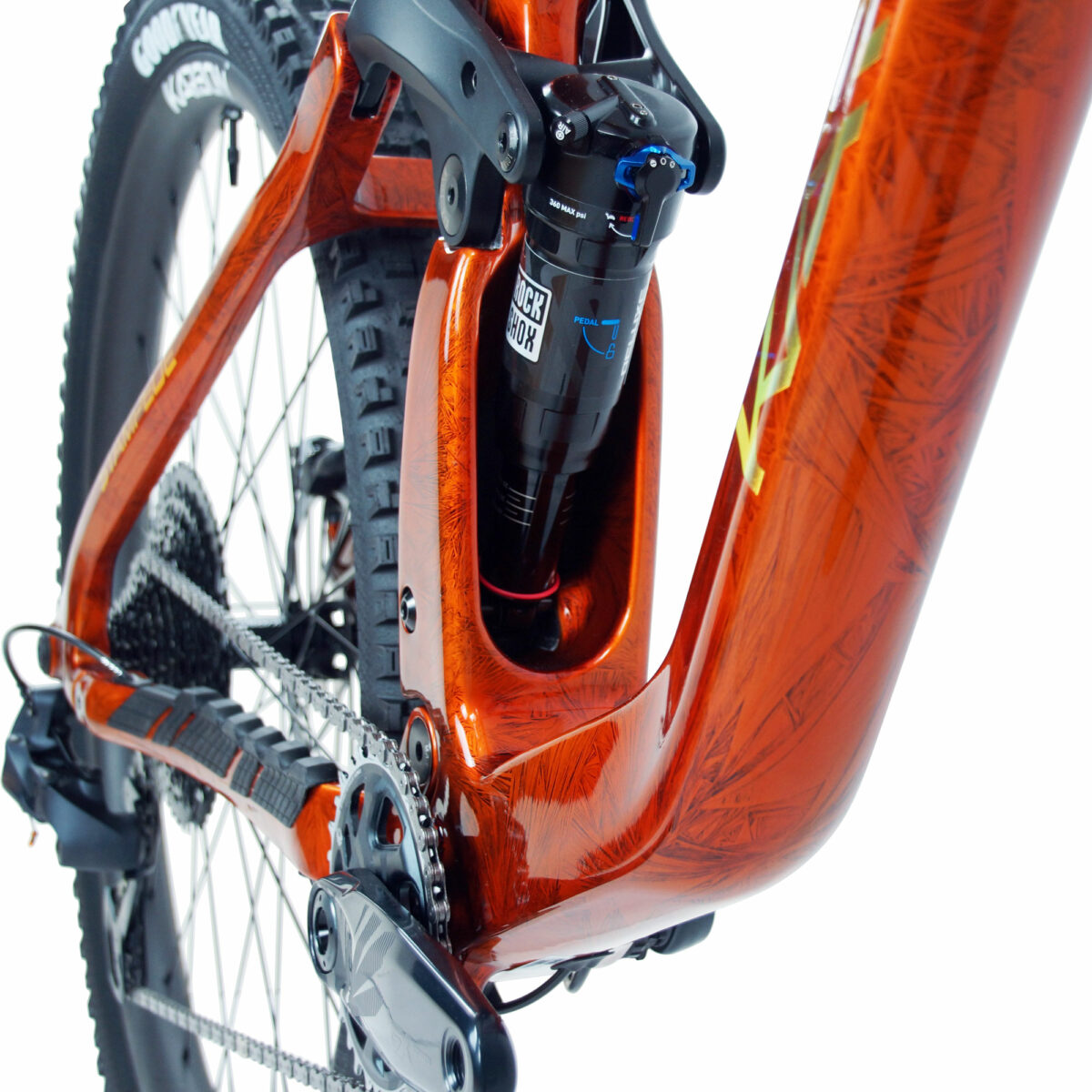

Shock	RockShox Deluxe Ultimate RCT - (185X55), DebonAir+ air spring, Trunnion Standard

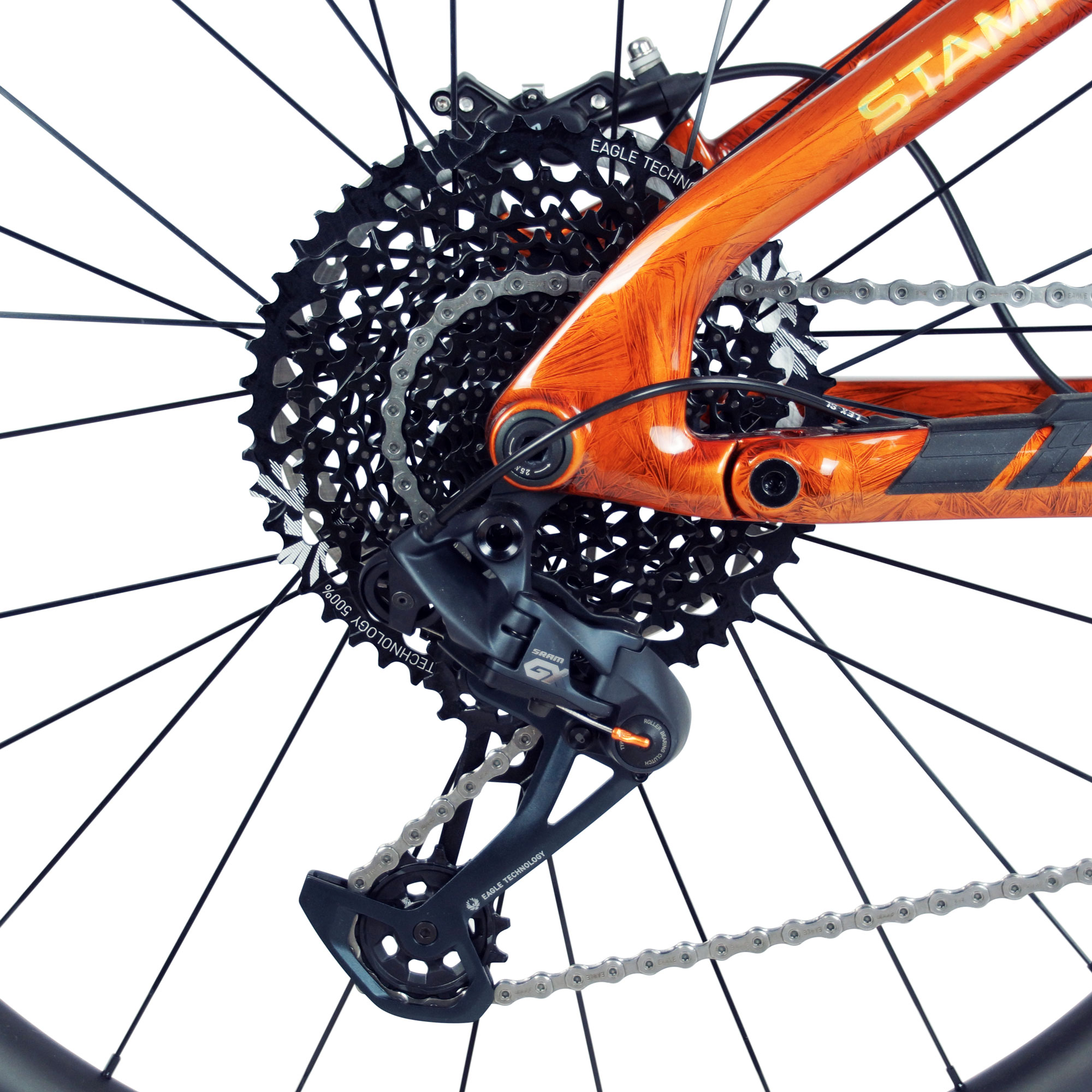

Rear Derailleur	SRAM GX Eagle 12 speed
Cassette	SRAM Eagle PG-1230 11-50 12 Speed
Chain	SRAM NX Eagle, 12 Speed
Shifters	SRAM GX Eagle Trigger 12 speed w Discrete Clamp

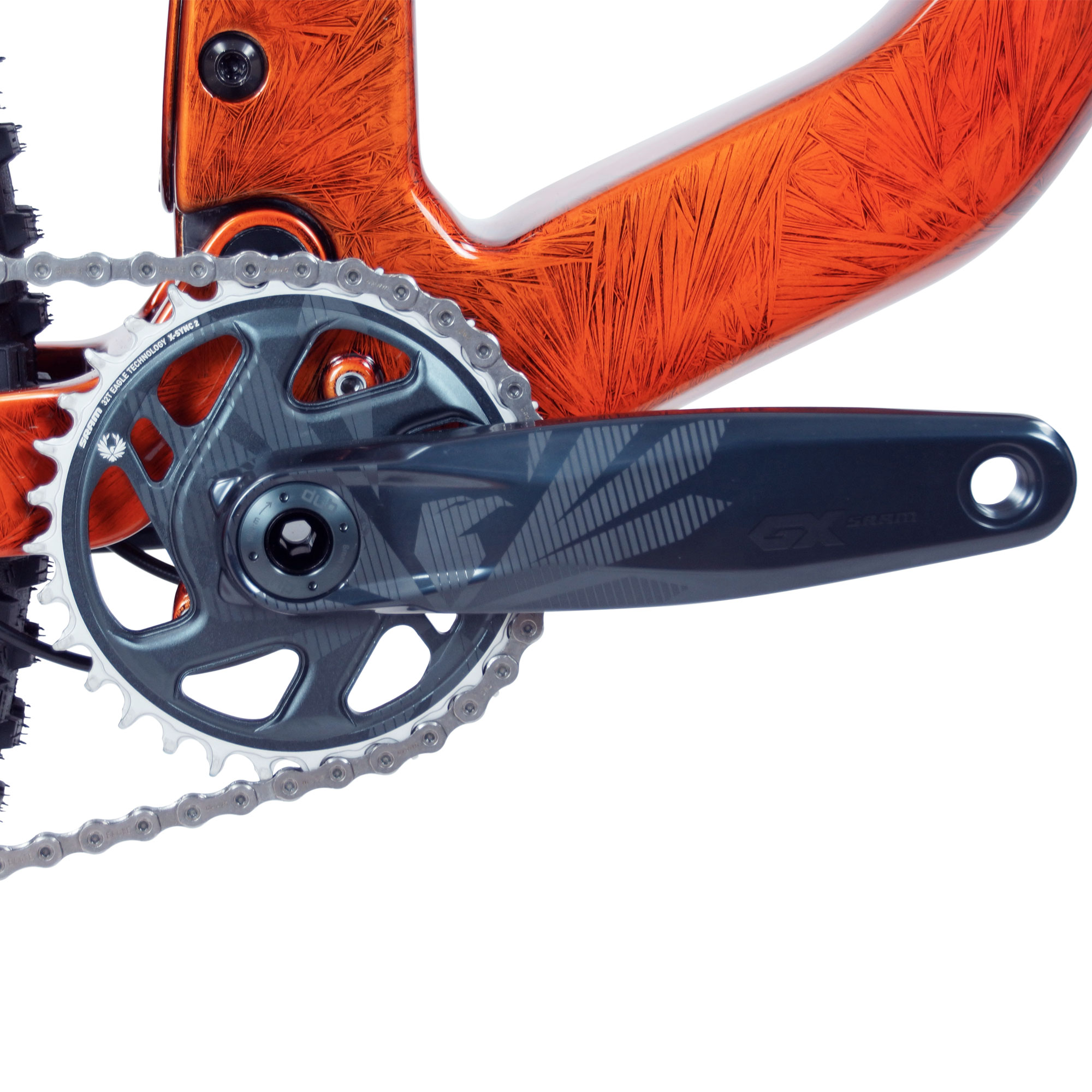

Crankset	SRAM GX Eagle Boost 148, 52mm chainline, DUB, 12 speed, 170mm length, 32T X-SYNC 2 Chainring
Max chainring size	32T
Bottom bracket	SRAM DUB, BSA 68/73mm

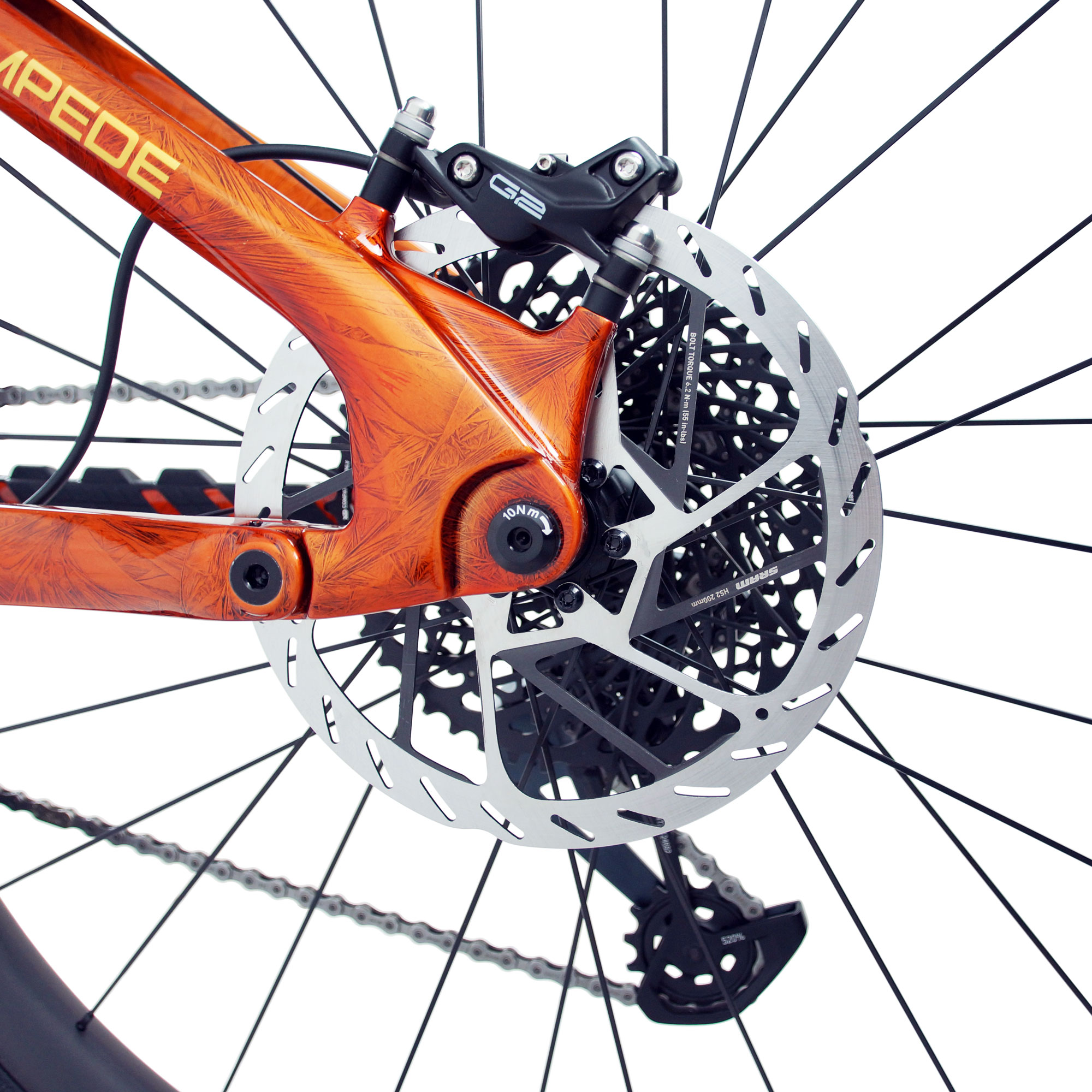

Brakes	Magura MT5 Pro hydraulic disc brakes with 4 piston calipers
Brake Rotors	Magura MDR-C 6-bolt Front: 203mm; Rear: 203mm

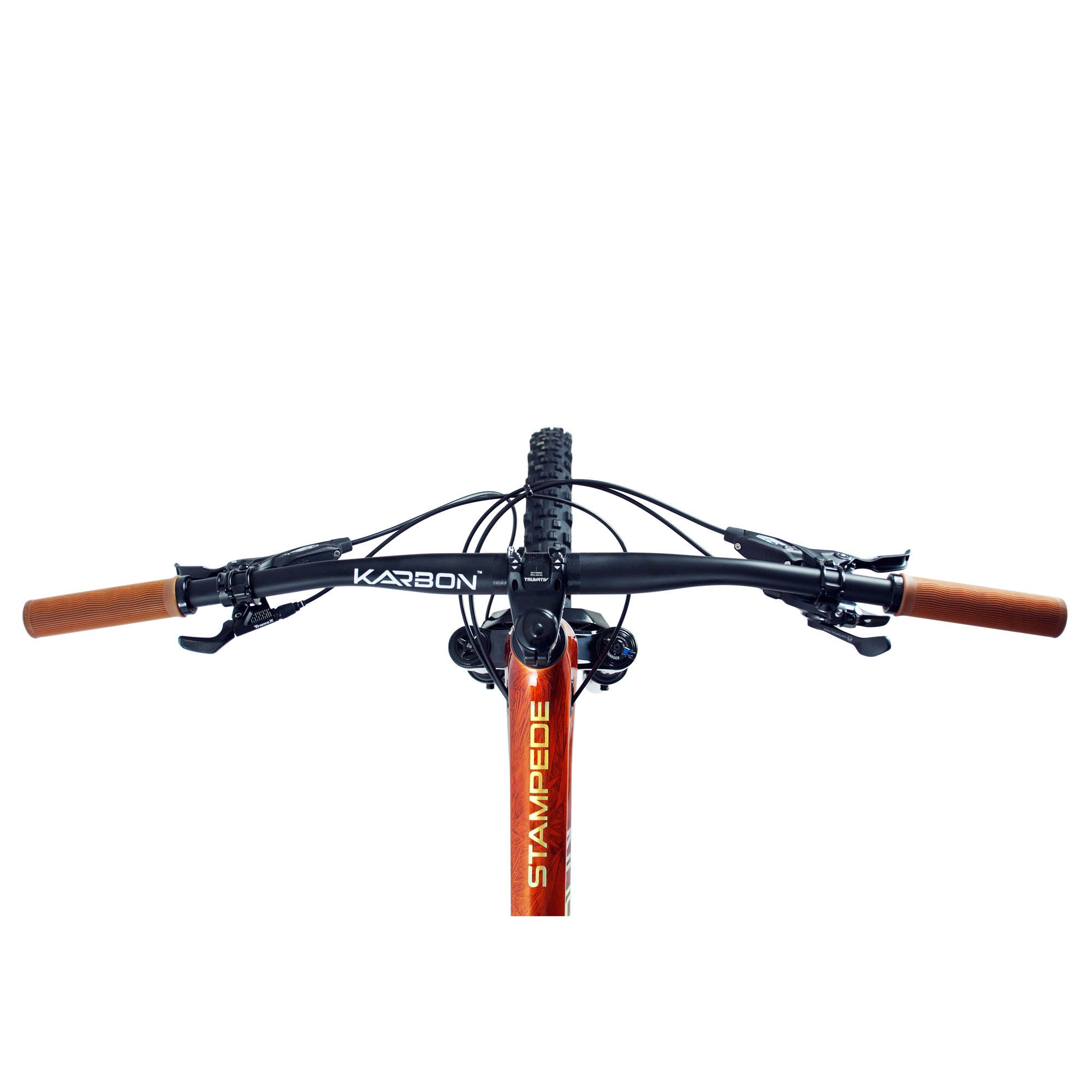

Handlebar	KARBON AM carbon fiber handlebar, 35mm, 800mm width, 5 degree upsweep, 9 degree backsweep, 25mm rise
Stem	Truvativ Stem Descendant, 0mm Rise, 35mm clamp, 50mm Length
Grips	Truvativ Descendant Black Single Locking
Front Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, Boost 110 mm, 15mm thru axle
Rear Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, SRAM XD driver, Boost 148 mm, 12mm thru axle
Front Tire	Goodyear Newton MTF Enduro, Tubeless Complete, triple density compound, 2x120 TPI casing, 29x2.50
Rear Tire	Goodyear Newton MTR Enduro, Tubeless Complete, triple density compound, 2x120 TPI casing, 29x2.40
Seat Post	TranzX Kitzuma, Size M: 31.6mm/125mm/Internal; Size L: 31.6mm/150mm/Internal; Size X-Large: 31.6mm/170mm/Internal.
Saddle	Karbon Bikes House Saddle
Weight	32.50 lbs. / 14.77 kgs. (Size M)
Weight Limit	300 lbs. / 136 kgs. total weight limit, including bicycle, rider and cargo)

Any of the above product information is subject to change without notice. Due to supply chain issues, we reserve the right to substitute components at any time without notice.

Karbon Stampede Geometry Illustration

Measured Area	Medium Measurements	Large Measurements	Extra Large Measurements
	M	L	XL
Seatpost Insert Length	135mm	170mm	200mm
Reach	451mm	480mm	505mm
Top Tube Length, Horizontal	602mm	632mm	652mm
Stack	620.1mm	625.3mm	644mm
Wheelbase	1220mm	1251mm	1273mm
Chainstay Length	435mm	435mm	435mm
Front Center	780mm	811mm	833mm
BB Drop	25mm	25mm	25mm
BB Height	355mm	355mm	355mm
Seat Tube Angle	76.4°	76.4°	76.4°
Head Tube Angle	64.4°	64.4°	64.4°
Seat Tube Length	410mm	445mm	485mm
Head Tube Length	95mm	100mm	110mm
Bike Standover Heigh	762mm	778mm	795mm
Fork Rake/Offset	44mm	44mm	44mm
Fork Length, Full	586mm	586mm	586mm
Trail	127mm	127mm	127mm

Size	Rider Height
M	5'5" -5'9" / 165cm - 175cm
L	5'9" - 6'1" / 175cm - 185cm

When choosing a frame, height is only one of several factors to consider. The other two equally important factors are the type of terrain and riding style. A larger size frame offers more stability, and gives you more room to move without upsetting the ride dynamics of the bike. A larger frame size will have a longer wheelbase putting the front wheel further ahead and making the bike feel more planted at higher speeds. On the other hand, a smaller size frame provides a more playful riding style and will feel more agile in tight corners.

Goodyear Tubeless Installation

1 review for Stampede GX

Rated 5 out of 5

Jack Deez – February 16, 2024

Excellent customer service! Tarek is at so many local rides, he’s like a trail side pit crew! So helpful when you’re trying to dial in the fit.
