Azur GX

$4,499.00

Features:

Spec	Description
Carbon Fiber Parts	Frame, wheels, handlebar and seatpost
Wheel Size	29"
Front Travel	100mm
Weight	22.10 lbs / 10.04 kg (M)

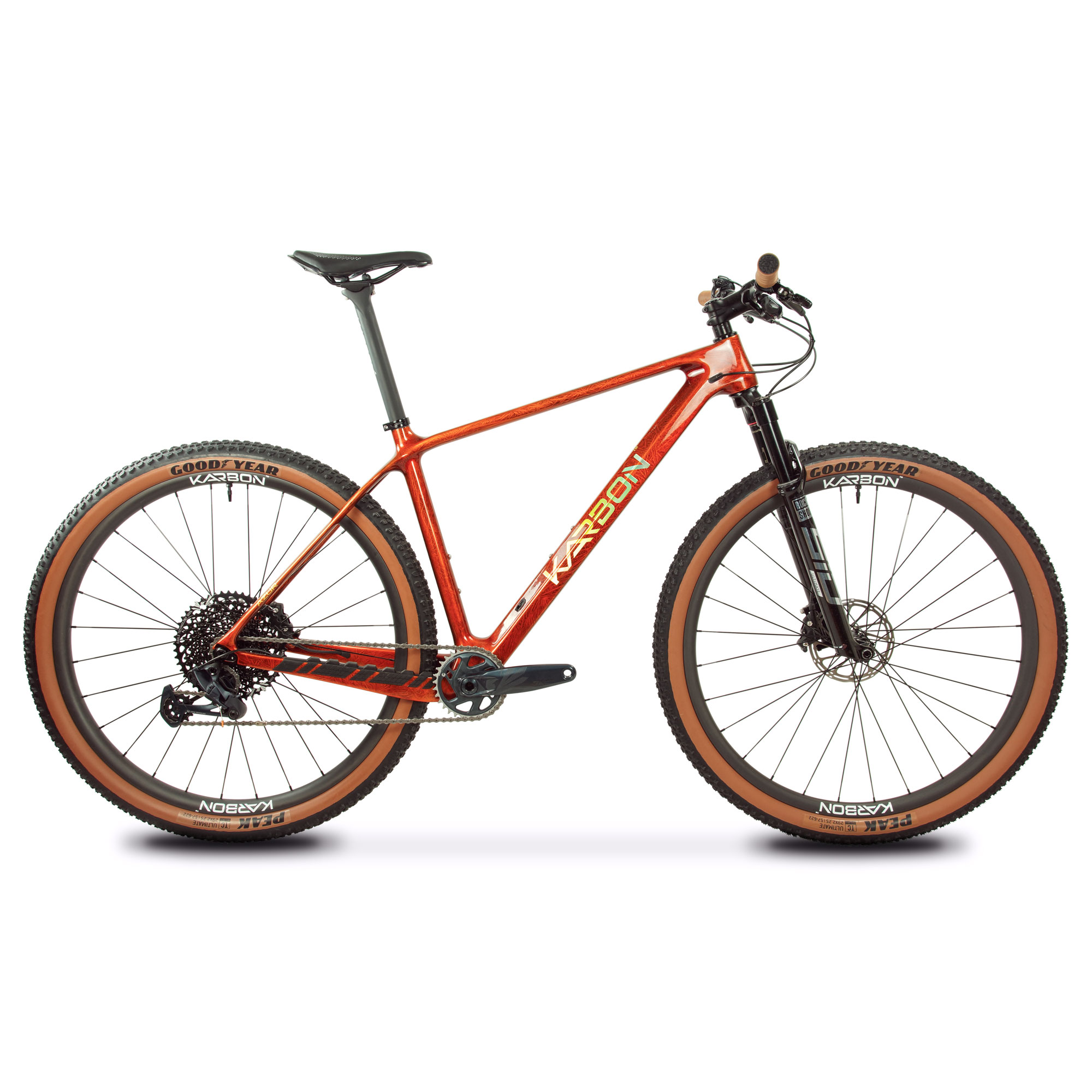

Azur GX is a thoroughbred XC hardtail racing bike with modern geometry fit for today’s tougher race courses. Its light weight and razor sharp handling make it the perfect bike for navigating singletracks and putting power down when trails point upward. It features our incredibly stiff yet super lightweight hardtail carbon fiber frame, state of the art front suspension technology courtesy of the latest race-ready RockShox SID SL Select fork, one of the lightest and fastest XC forks on the market. The drivetrain features the extremely durable and versatile SRAM GX Eagle system which combines greater durability and performance while maintaining a significant weight advantage over other drivetrains. The braking system features powerful and highly adjustable hydraulic SRAM Level TLM brakes mated to 160mm rotors. Azur GX also features our Karbon 2933 carbon fiber wheels with asymmetric rim design and 33mm outer width (26mm inner width) mated to Goodyear Peak cross country tubeless tires. Of course, Azur GX wouldn’t be a proper lightweight elite XC racing bike without our carbon fiber seatpost, which weighs a mere 230g / 8oz (including hardware). All these state of the art specs will be at your fingertips through our sleek and lightweight Karbon MTB Carbon Fiber Flat Handlebar.

With the Karbon Azur GX, you will be able to tackle the most challenging race courses, climb the steepest uphills and maybe win a few podiums along the way!

Azur GX Technical Specifications

Part	Description

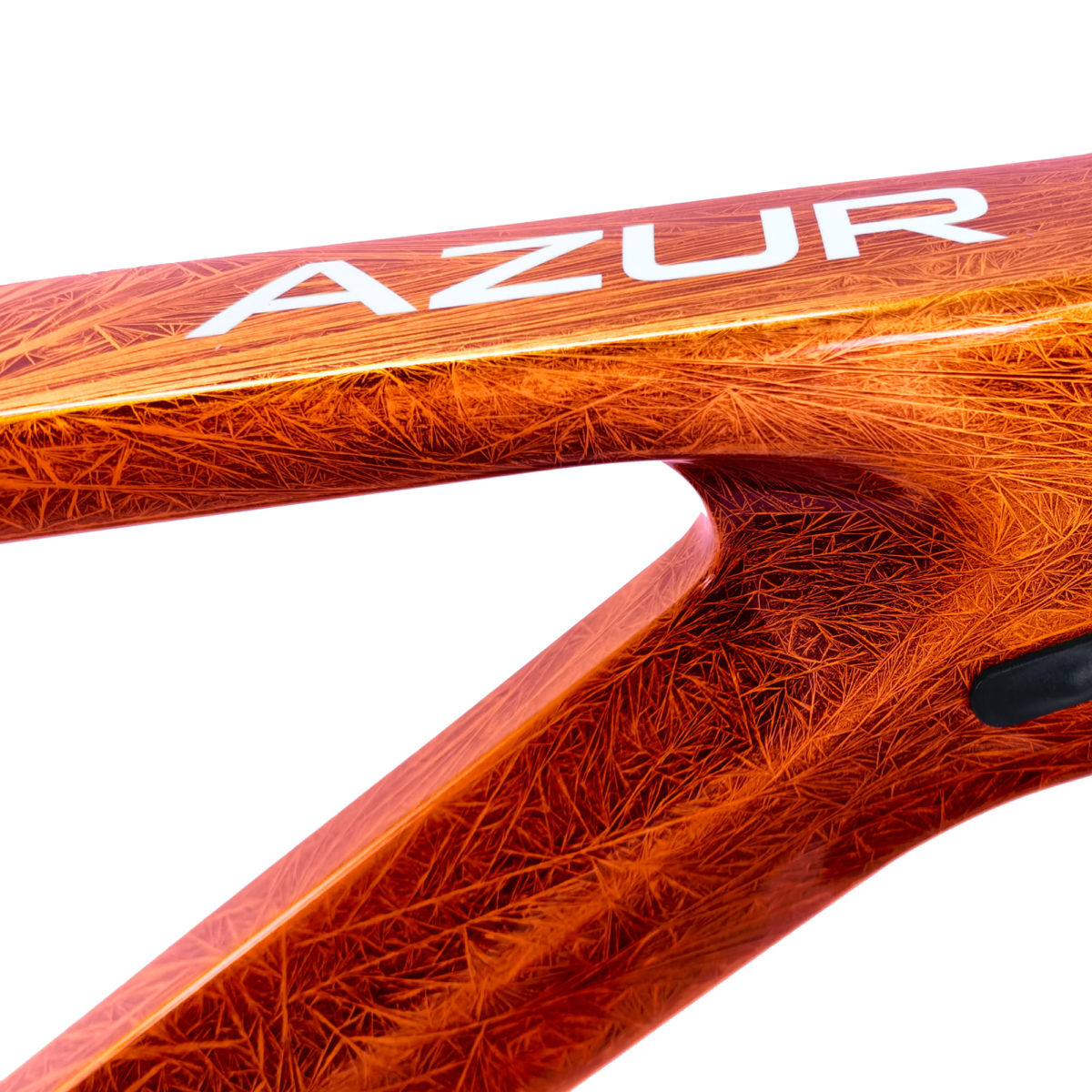

Frame	High modulus carbon fiber boost frame with internal cable routing, seatpost diameter 31.6mm (34.9 seat post clamp), Boost 148mm

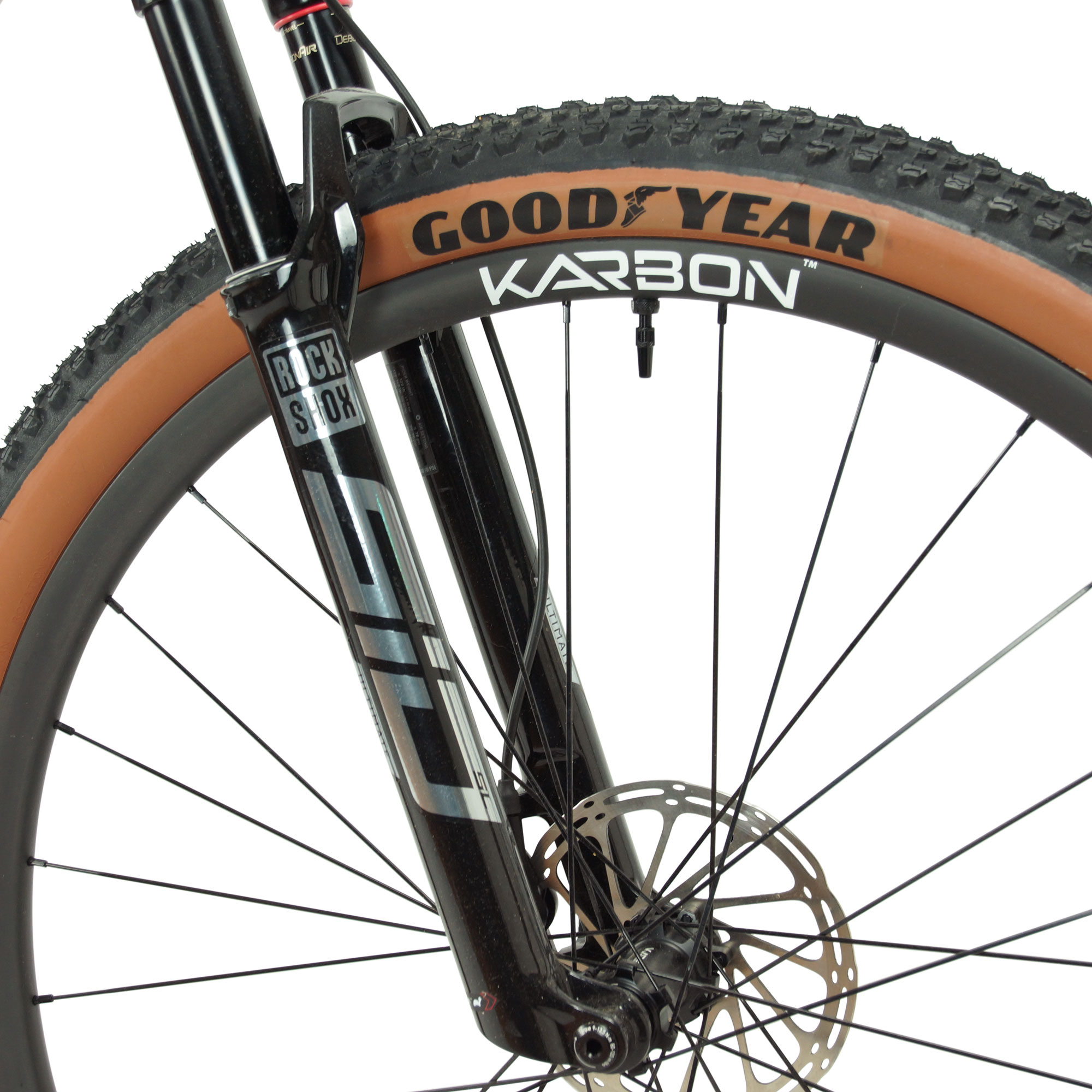

Fork	RockShox SID SL Select, Charger RL damper, DebonAir air spring, 15x110 Boost, Maxle Stealth, 100mm travel, tapered steerer, 44mm offset with TwistLoc remote

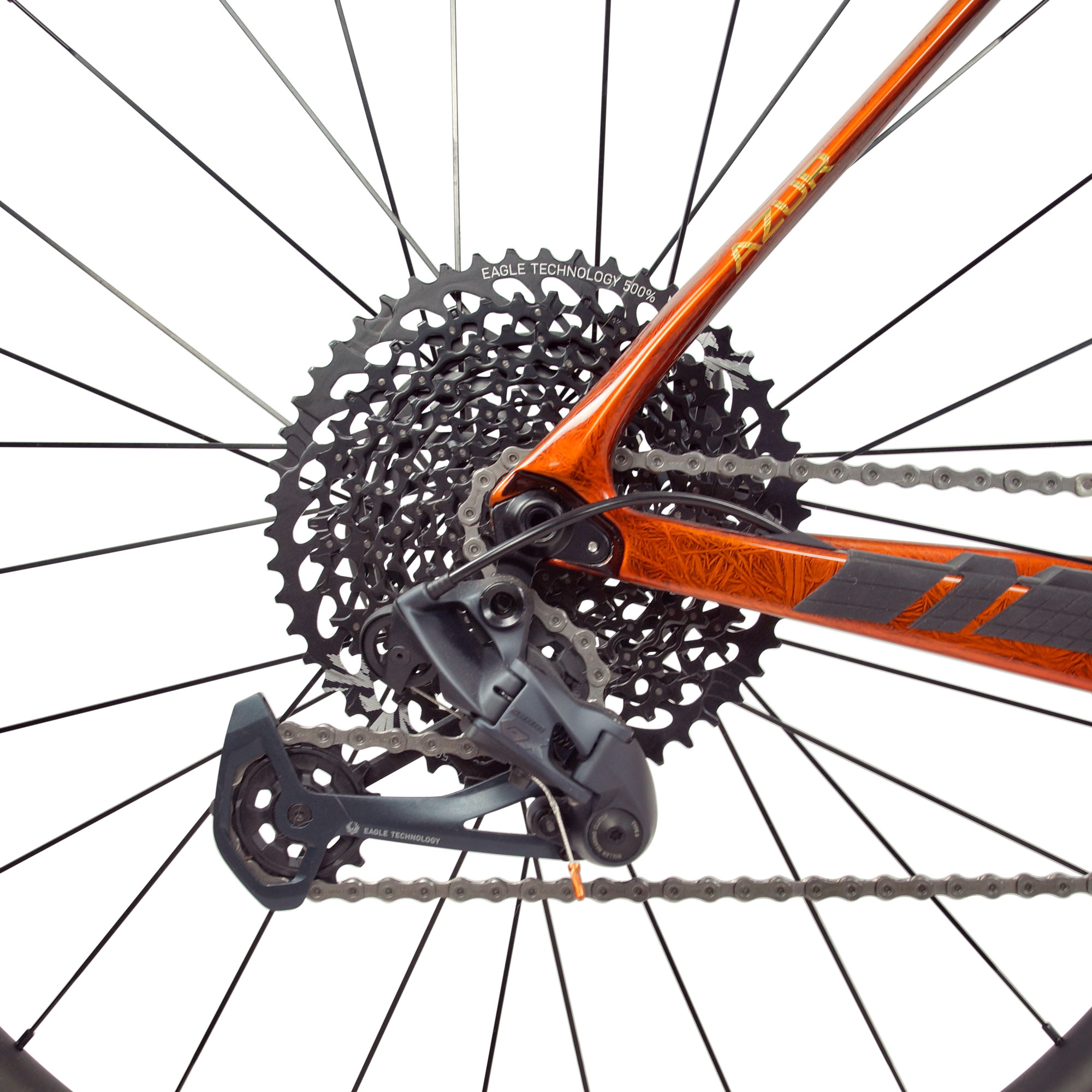

Rear Derailleur	SRAM GX Eagle 12 speed
Cassette	SRAM XG-1275 Eagle 10-50 12 Speed
Chain	SRAM GX Eagle, 12 Speed
Shifters	SRAM GX Eagle Trigger 12 speed w Discrete Clamp

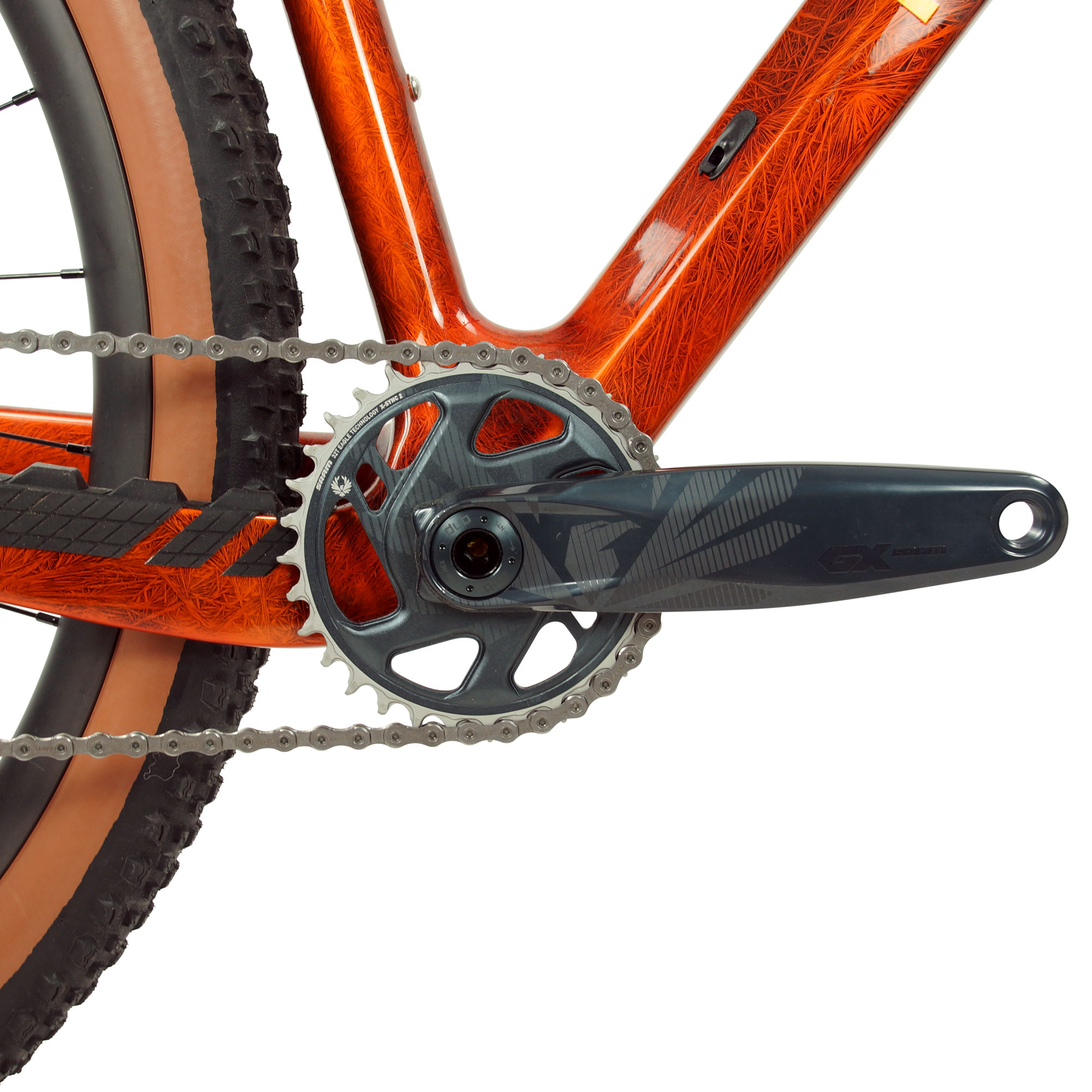

Crankset	SRAM GX Eagle Boost 148, 52mm chainline, DUB, 12 speed, 175mm length, 32T X-SYNC 2 Chainring
Max chainring size	34T
Bottom bracket	SRAM DUB, PressFit 92mm

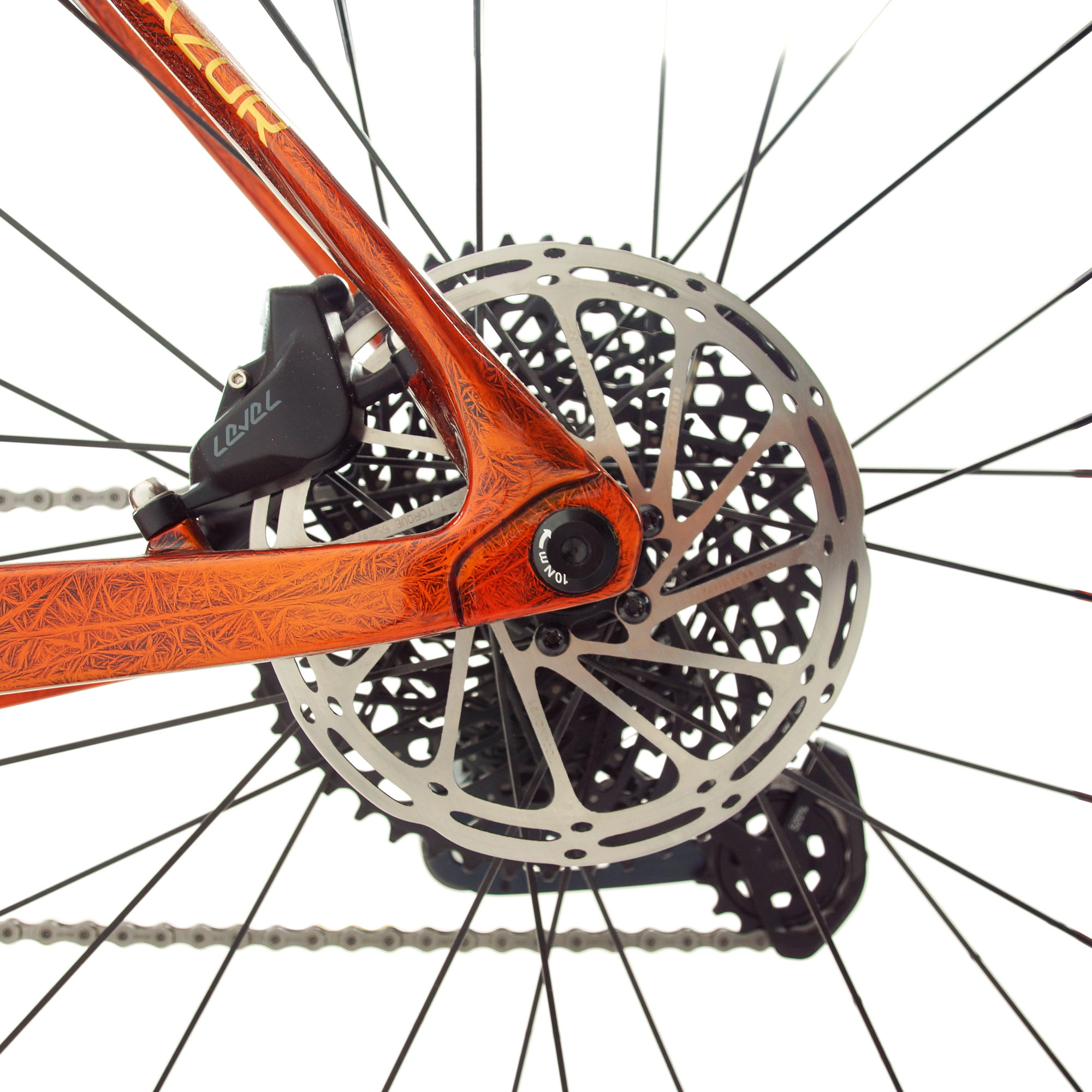

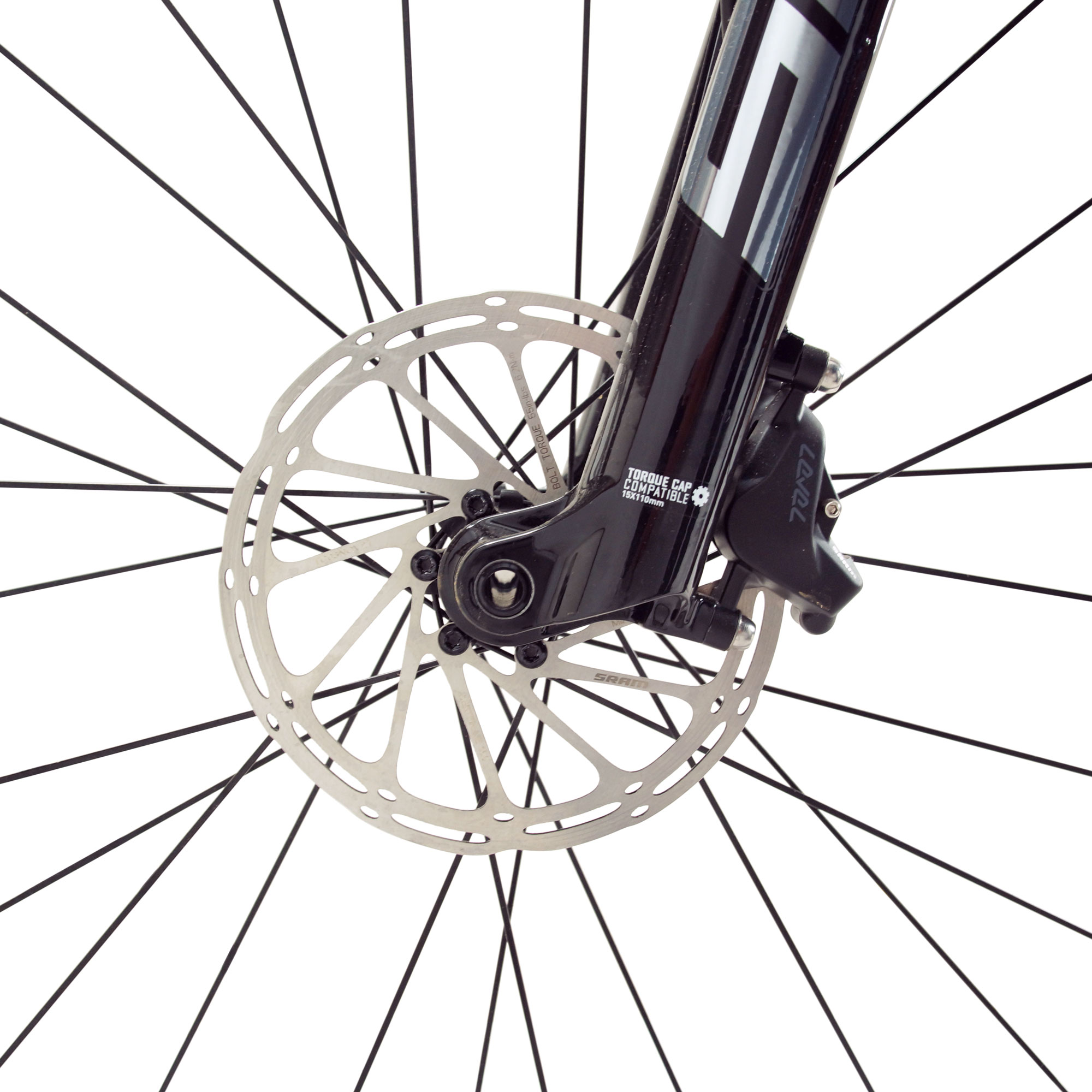

Brakes	SRAM Level TLM hydraulic disc brakes with dual piston calipers and MatchMaker integrated clamp
Brake Rotors	SRAM CenterLine 6-bolt 160mm

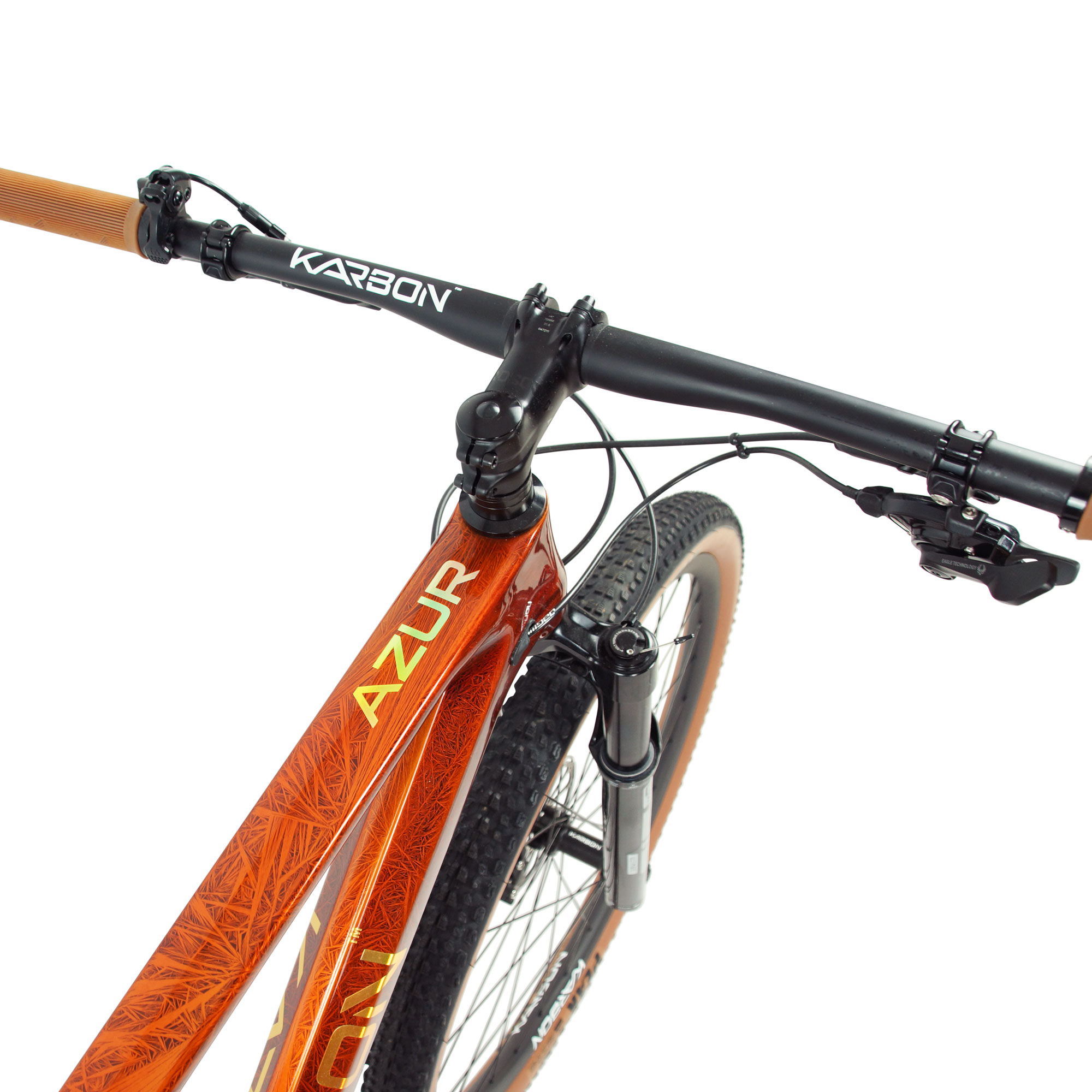

Handlebar	KARBON XC flat handlebar, carbon fiber, 31.8mm, 750mm width, 9 degree backsweep
Stem	SRAM ATMOS 7K 31.8mm Clamp, +/- 6 degree rise/drop, 70mm Length 1-1/8 Steerer Bead
Grips	Truvativ Descendant Black Single Locking
Front Wheel	KARBON XC 2933 Carbon Fiber, Asymetric Design, 33mm outer width (26mm inner width), Tubeless Ready, 6-bolt, Boost 110 mm, 15mm thru axle
Rear Wheel	KARBON XC 2933 Carbon Fiber, Asymetric Design, 33mm outer width (26mm inner width), Tubeless Ready, 6-bolt, SRAM XD driver, Boost 148 mm, 12mm thru axle
Front Tire	Goodyear Peak SL Race, Tubeless Complete, 120 TPI casing + M:Wall, XC Race compound, 29x2.25
Rear Tire	Goodyear Peak SL Race, Tubeless Complete, 120 TPI casing + M:Wall, XC Race compound, 29x2.25
Seat Post	KRABON 31.6mm x 400mm carbon fiber seatpost
Saddle	Karbon Bikes House Saddle
Weight	22.10 lbs / 10.04 kg (Size M)
Weight Limit	300 lbs. / 136 kgs. total weight limit, including bicycle, rider and cargo)

Any of the above product information is subject to change without notice. Due to supply chain issues, we reserve the right to substitute components at any time without notice.

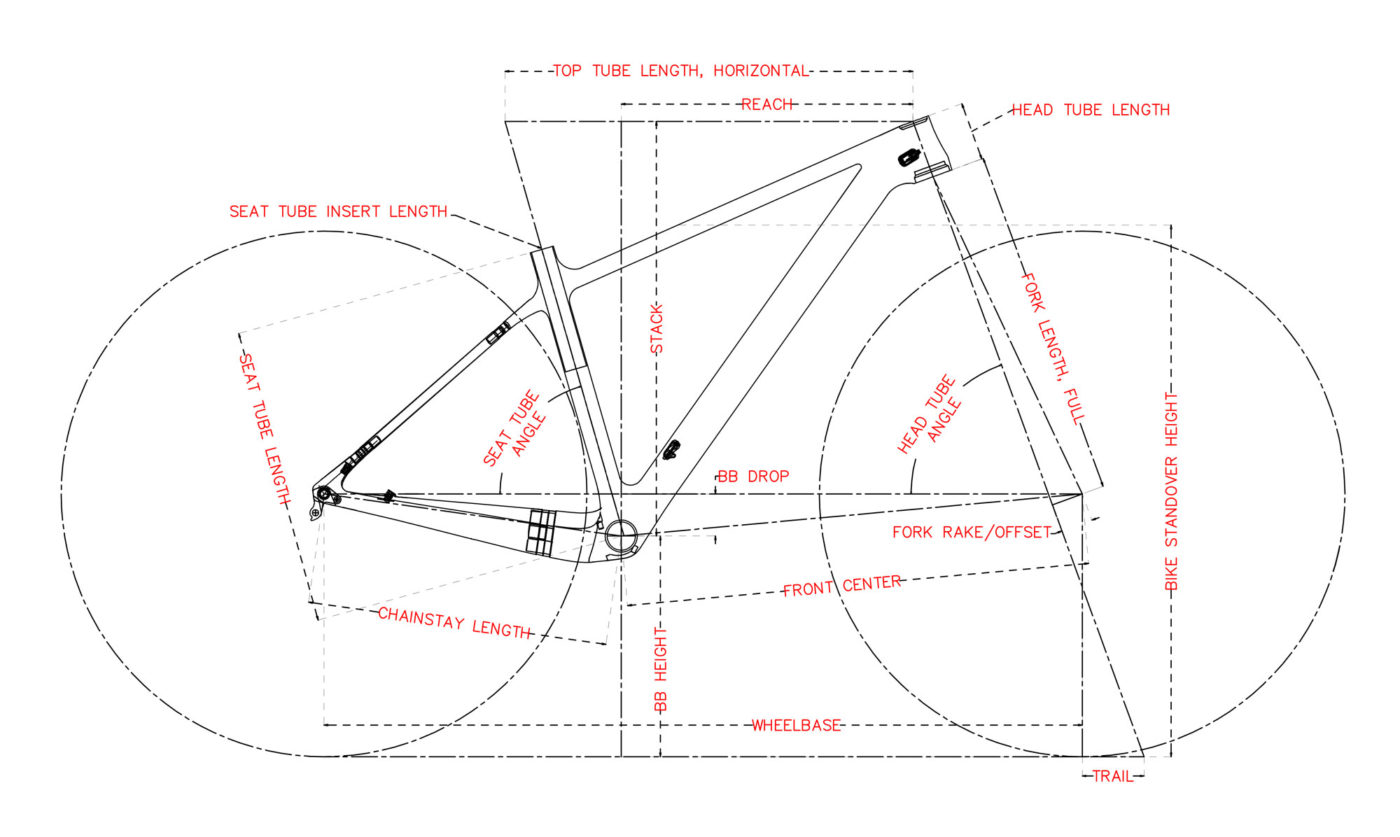

Karbon Azur Geometry Illustration

Measured Area	Medium Measurements	Large Measurements
	M	L
Seatpost Insert Length	220mm	240mm
Reach	422mm	451mm
Top Tube Length, Horizontal	595mm	625mm
Stack	599.4mm	610.4mm
Wheelbase	1096.9mm	1127.4mm
Chainstay Length	435mm	435mm
Front Center	670.9mm	701.4mm
BB Drop	60.6mm	60.6mm
BB Height	316mm	316mm
Seatpost Insert Length	180mm	200mm
Reach	429.2mm	452.3mm
Seat Tube Angle	74°	74°
Head Tube Angle	70°	70°
Seat Tube Length	431mm	483mm
Head Tube Length	90mm	95mm
Bike Standover Heigh	768.8mm	807mm
Fork Rake/Offset	44mm	44mm
Fork Length, Full	506mm	506mm
Trail	89.5mm	89.5mm

Size	Rider Height
M	5'5" -5'9" / 165cm - 175cm
L	5'9" - 6'1" / 175cm - 185cm

When choosing a frame, height is only one of several factors to consider. The other two equally important factors are the type of terrain and riding style. A larger size frame offers more stability, and gives you more room to move without upsetting the ride dynamics of the bike. A larger frame size will have a longer wheelbase putting the front wheel further ahead and making the bike feel more planted at higher speeds. On the other hand, a smaller size frame provides a more playful riding style and will feel more agile in tight corners.
