PowerLine SL X0 AXS

Original price was: $9,799.00.Current price is: $6,859.99.

Features:

Spec	Description
Carbon Fiber Parts	Frame, wheels and handlebar
Wheel Size	29"
Front Travel	160mm
Rear Travel	150mm
Motor	Bafang M820, 75 Nm / 55 ft-lb
Battery	Bafang 410 Wh 43V Battery
Weight	41 lbs. / 18.64 kgs. (Size M)

Introducing the New Karbon™ PowerLine SL X0 AXS eMTB: Defying Limits in Lightweight Enduro Performance! Unleash the thrill of conquering rugged trails like never before with the all-new Karbon PowerLine SL X0 AXS eMTB – a masterpiece of innovation that redefines lightweight performance in the world of full-assist enduro eMTBs. Designed to elevate your riding experience, this remarkable machine weighs in at an astonishing 42 lbs. / 19 kg., setting a new standard for agility and control.

Engineered to Perfection: Get ready to embrace the extraordinary. With 150mm of rear travel and a 160mm front travel, the Karbon PowerLine SL X0 AXS enduro eMTB is your ticket to conquering the most challenging terrains with confidence. Discover the modern geometry of the Karbon PowerLine SL eMTB, meticulously crafted to enhance your riding capabilities. A slack head tube angle of 64° ensures stability and confidence during daring descents, while the 77° seat tube angle optimizes power transfer for efficient climbs.

Unrivaled Power and Precision: Powered by Bafang’s cutting-edge M820 motor, this eMTB packs a punch with 250W and 75Nm of torque – propelling you up steep ascents and surging through technical descents with unparalleled ease. This state-of-the-art motor features a magnesium housing with an adaptive torque and cadence sensor. Accompanied by a 410Wh battery, you’ll enjoy extended adventures without compromise, making every trail ride an unforgettable journey.

Ultimate Handling Performance: The Karbon PowerLine SL X0 AXS boasts a RockShox Lyric Ultimate fork and a RockShox Deluxe Ultimate rear shock, a dynamic duo that absorbs the gnarliest bumps and drops, while ensuring impeccable responsiveness. This combination guarantees that your ride remains smooth, controlled, and exhilarating, no matter the terrain. PowerLine SL X0 AXS also features our eMTB grade Karbon 2940 carbon fiber wheels with asymmetric rim design and 40mm outer width (34mm inner width) mated to Goodyear Newton tubeless front and rear specific tires. All these state of the art specs will be at your fingertips through our sleek and lightweight Karbon MTB Carbon Fiber Handlebar.

Precision Braking and Shifting: Experience the confidence of Magura’s MT7 Pro 4-piston hydraulic brakes, delivering unparalleled fade-resistant stopping power and modulation to match your speed demons. Paired with SRAM’s latest eMTB optimized Eagle Transmission, you’ll effortlessly shift through gears under full power without having to back off, maintaining optimal cadence for superior traction and momentum. In fact, the more power you apply, the better it shifts! This blend of precision and control sets you up for mastery on any trail.

Unmatched Lightweight Construction: Crafted to defy gravity, the Karbon PowerLine SL eMTB features an advanced high-modulus carbon fiber frame that sets new standards in durability and weight reduction. Coupled with feather-light yet extremely stiff carbon fiber 29″ wheels, every pedal stroke propels you forward with unparalleled efficiency, while minimizing fatigue on the most demanding rides.

Aesthetic Excellence: The Karbon PowerLine SL eMTB isn’t just about performance – it’s a visual masterpiece. Adorned with a stunning custom paint finish with holographic decals that comes standard, this eMTB is a true reflection of your unique style and unyielding passion for adventure.

Are you ready to redefine what’s possible? Unleash the power of the Karbon PowerLine SL X0 AXS eMTB and experience enduro riding in a new dimension. Dominate the trails, conquer challenges, and make every ride an unforgettable memory. Elevate your journey today.

WE GOT YOU COVERED

Money Back Guarantee

We are confident that that you will enjoy riding your Karbon bike as much as we enjoyed making it for you. However, if for whatever reason you are not 100% satisfied, just contact us and we will make it right.

Lifetime Warranty

All Karbon frames and wheels are covered for life against damage caused manufacturing defects in materials or workmanship for the original owner. See our Warranty page for details.

Back on the Trail Crash Replacement

All Karbon bikes are covered under our Back on the Tail Crash Replacement program. In the event of a crash or non-warranty situation, we’ll get you back on the trail with a discounted replacement price.

PowerLine SL X0 AXS Technical Specifications

Part	Description
Frame	High modulus carbon fiber boost frame with internal cable routing, seatpost diameter 31.6mm (34.9 seat post clamp), Boost 148mm, 150mm travel

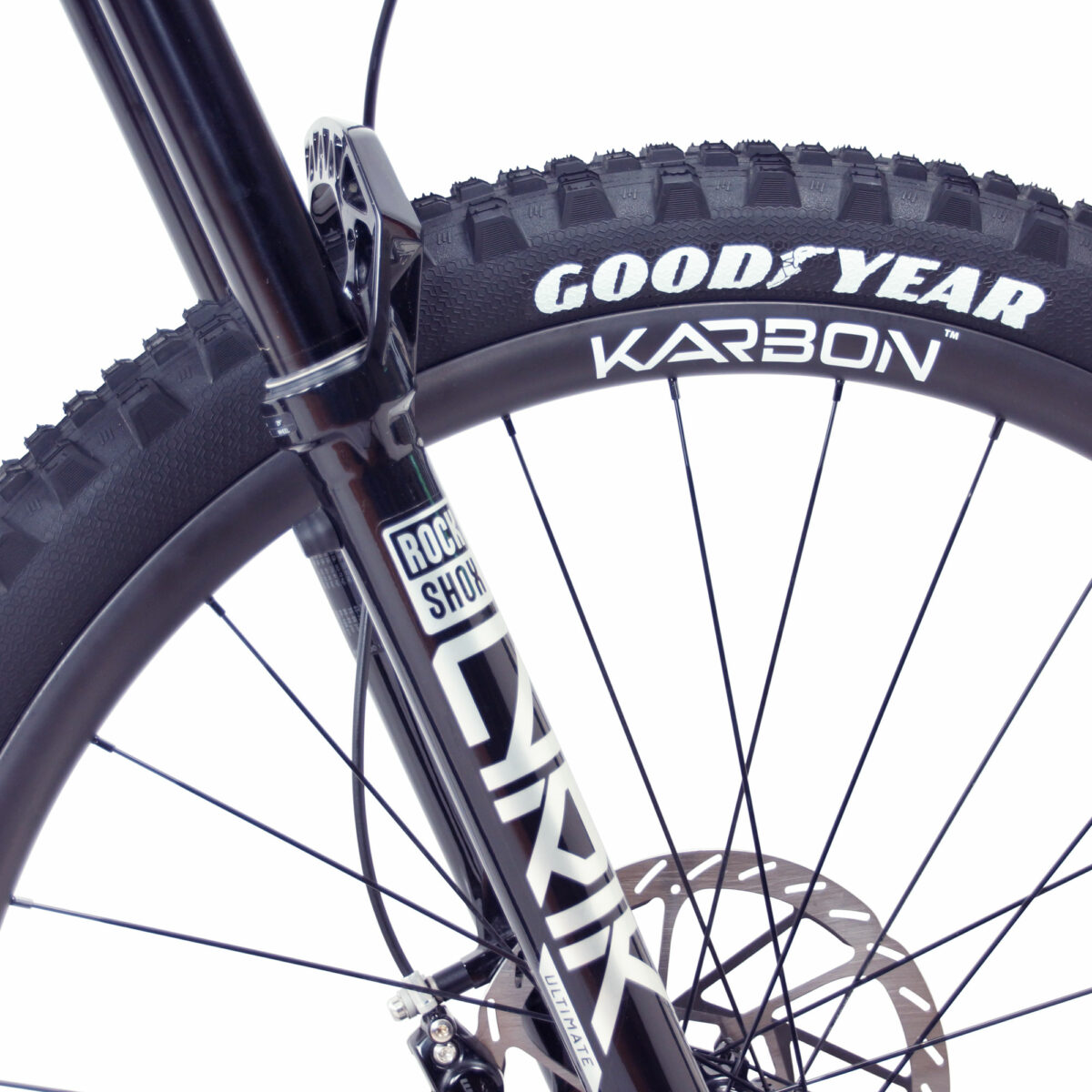

Fork	RockShox Lyric Ultimate, Charger 3 RC2 damper with ButterCups, DebonAir+ air spring with ButterCups, 15x110 Boost, Maxle Stealth, 160mm travel, tapered steerer, 44mm offset
Shock	RockShox Deluxe Ultimate RCT - (185X55), DebonAir+ air spring, Trunnion Standard

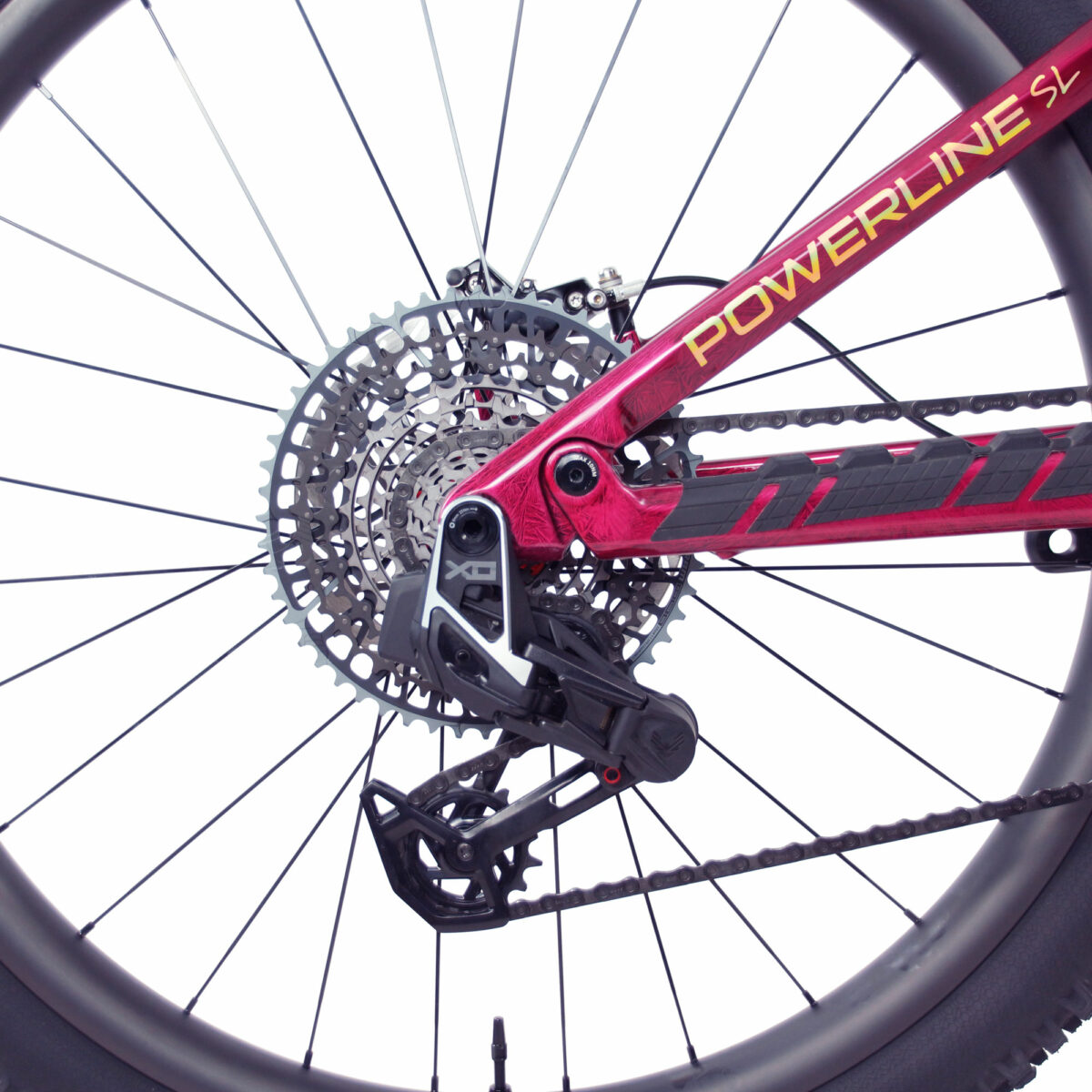

Rear Derailleur	SRAM X0 AXS T-Type Eagle 12 speed
Cassette	SRAM X0 Eagle T-Type 10-52 12 speed
Chain	SRAM X0 Eagle Transmission Flattop Chain, 12 Speed

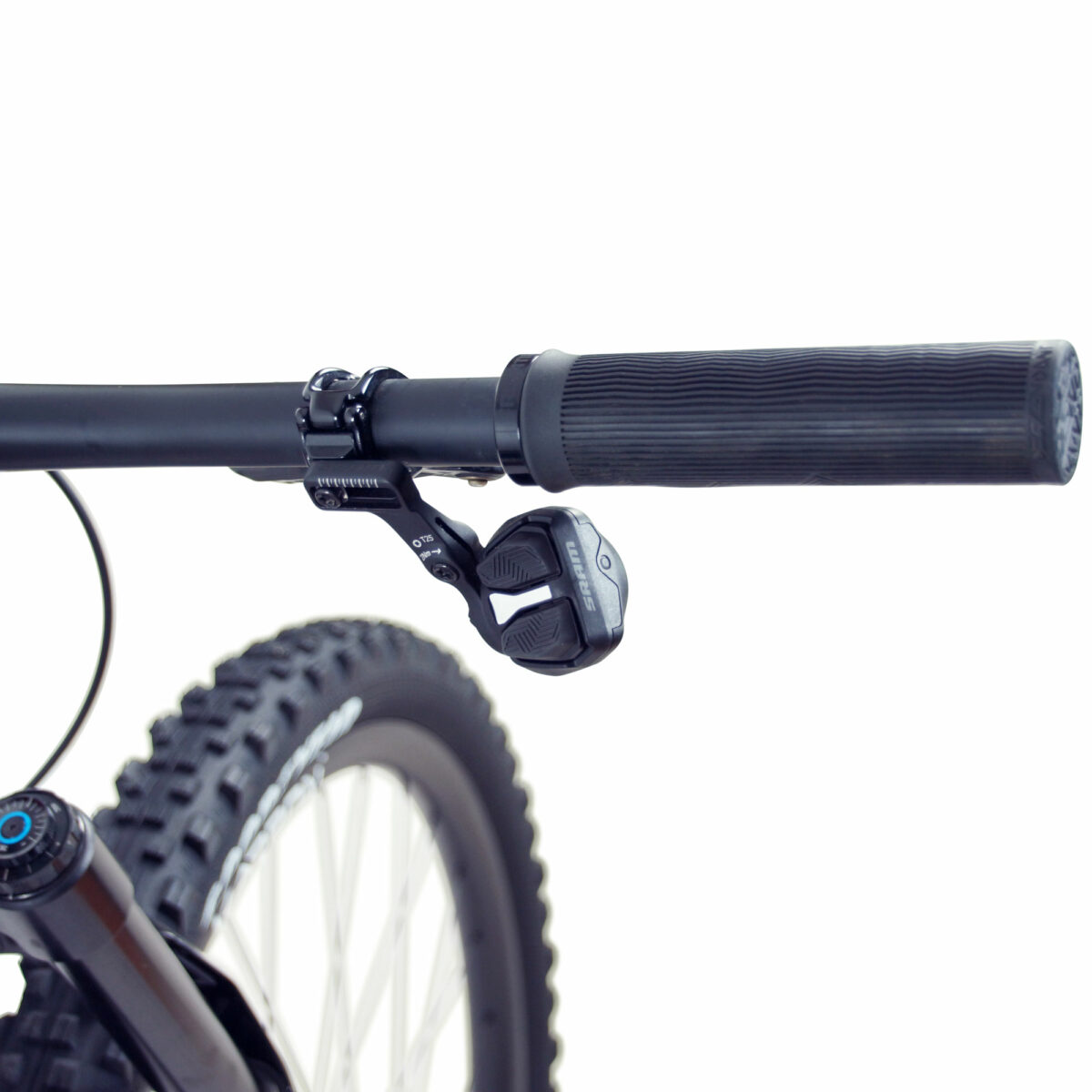

Shifter	SRAM AXS Pod Ultimate Electronic Controller

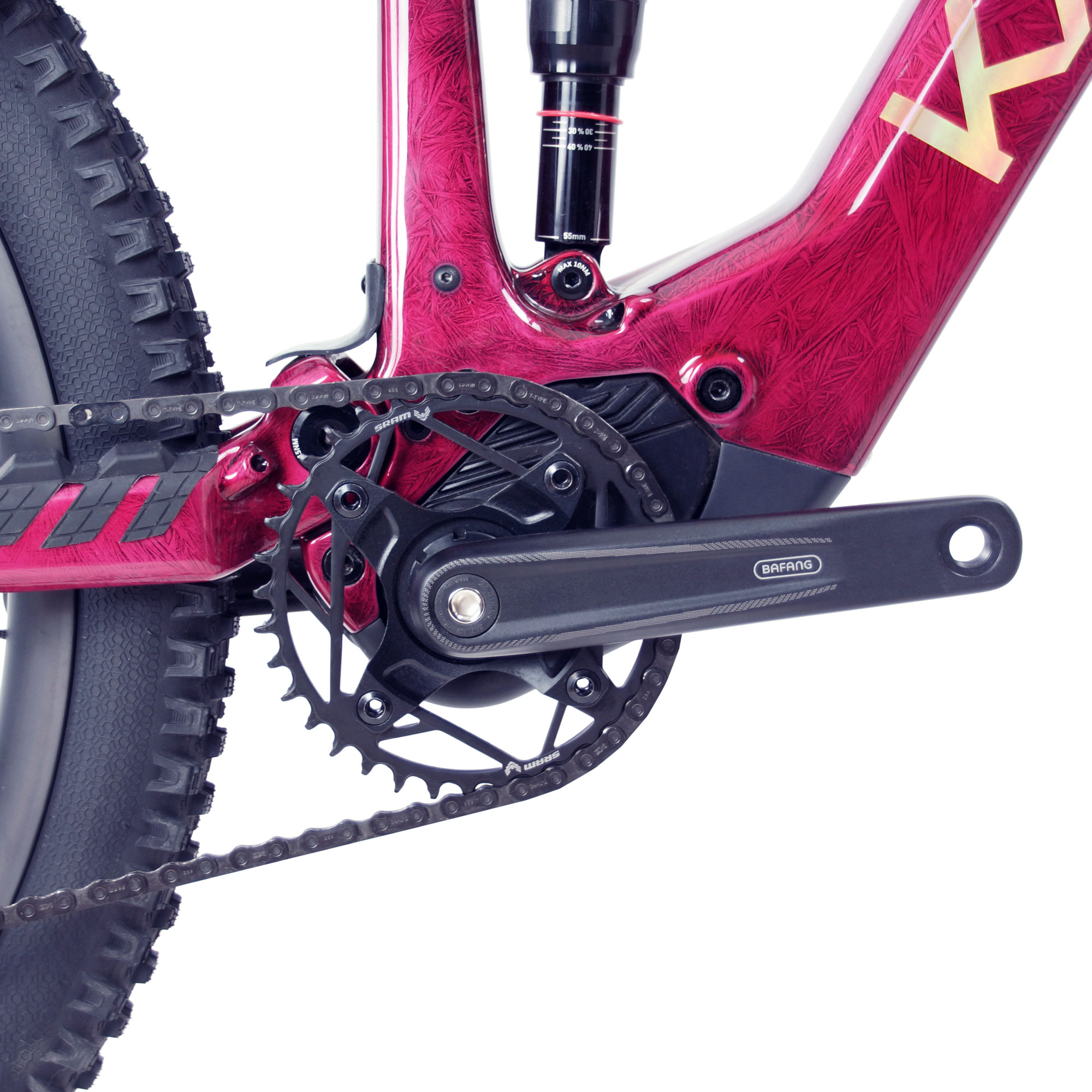

Chainring	SRAM Eagle T-Type Transmission e-MTB Chainring, 34T
Crankset	Bafang 165mm length

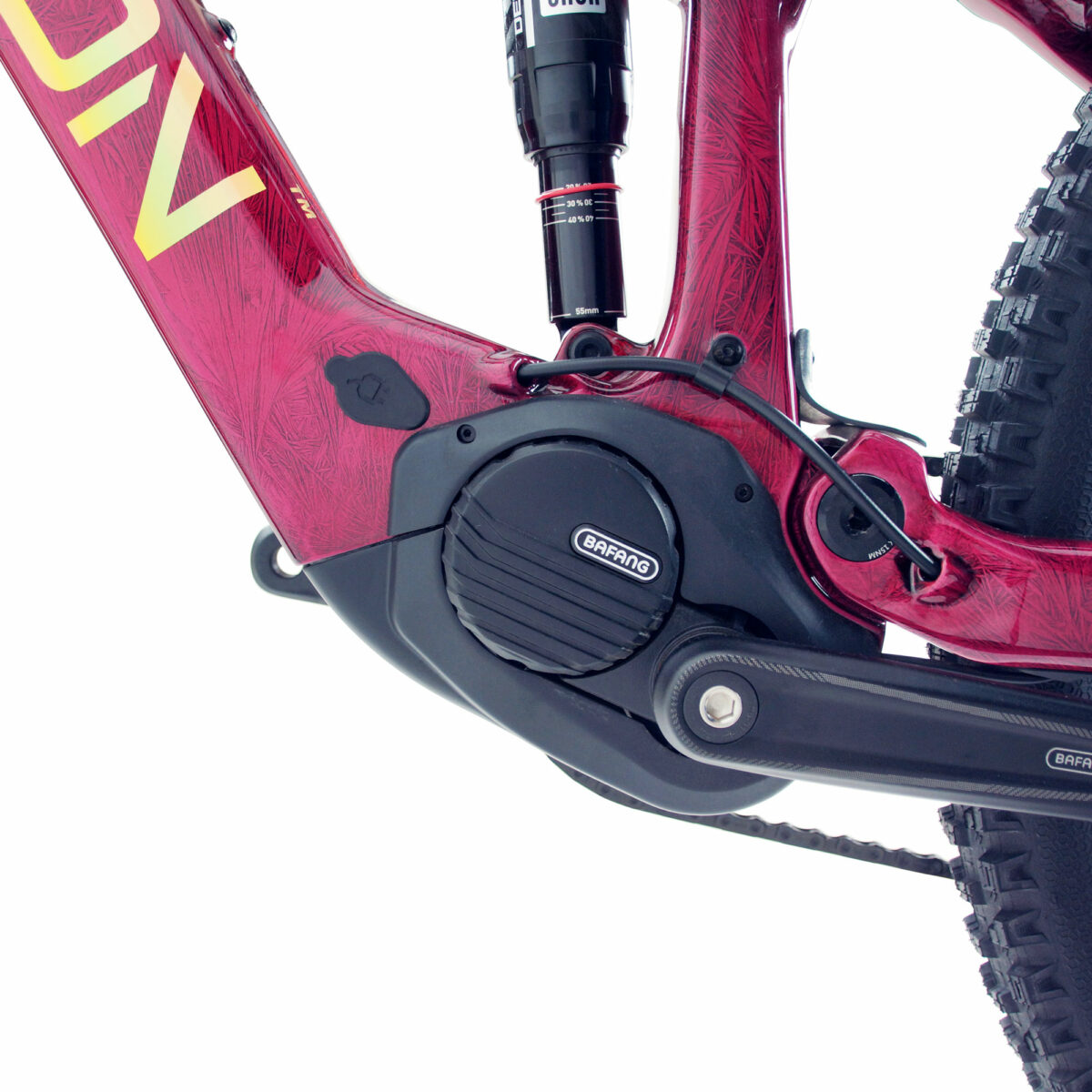

Motor	Bafang M820, magnesium motor body with adaptive speed and torque sensors, 75 Nm (55 ft-lb) max assist up to 20 mph (32 km/h)
Battery	Bafang 410Wh 43V integrated
Charger	Bafang 2A, 110-220V
Display	Bafang DP E181 with Bluetooth 5.0

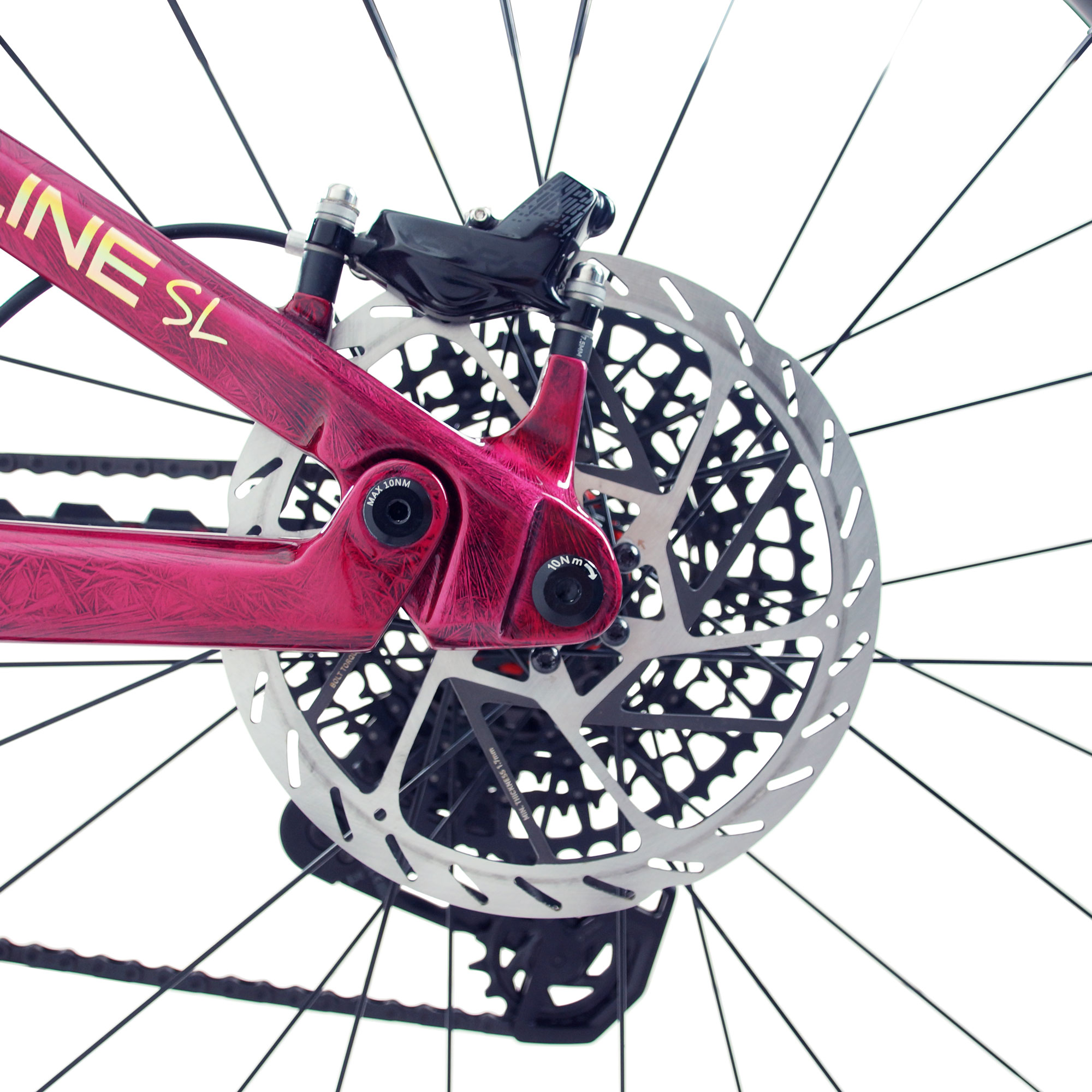

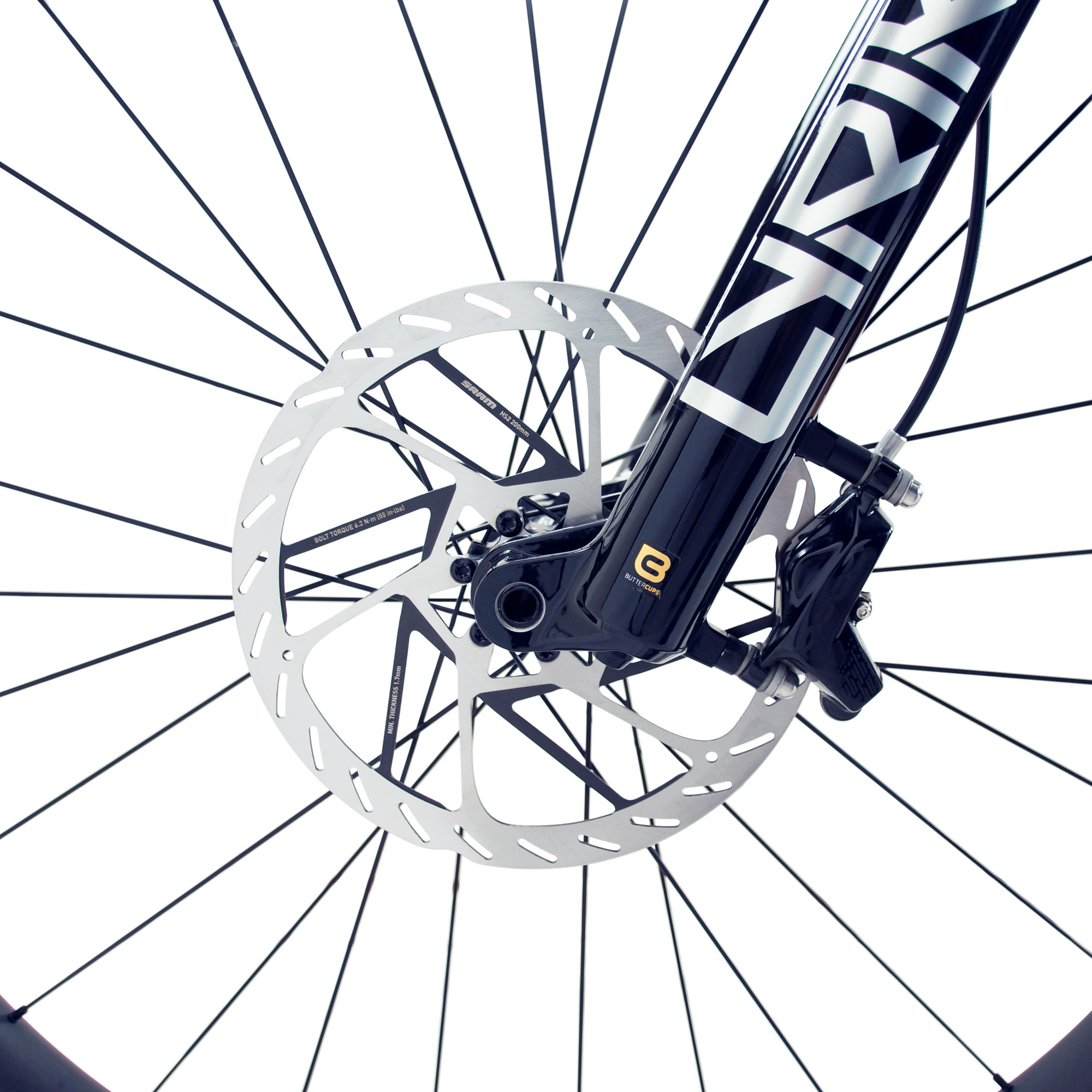

Brakes	Magura MT7 Pro hydraulic disc brakes with 4 piston calipers
Brake Rotors	Magura MDR-C 6-bolt Front: 203mm; Rear: 203mm
Handlebar	KARBON AM carbon fiber handlebar, 35mm, 800mm width, 5 degree upsweep, 9 degree backsweep, 25mm rise
Stem	Truvativ Stem Descendant, 0mm Rise, 35mm clamp, 50mm Length
Grips	Truvativ Descendant Black Single Locking
Front Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, Boost 110 mm, 15mm thru axle
Rear Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, SRAM XD driver, Boost 148 mm, 12mm thru axle
Front Tire	Goodyear Newton MTF, Tubeless Complete, triple density compound, 2x120 TPI casing, 29x2.50
Rear Tire	Goodyear Newton MTR, Tubeless Complete, triple density compound, 2x120 TPI casing, 29x2.40
Seat Post	TranzX EDP01 Wireless Dropper Post, Size M: 31.6mm/125mm/Internal; Size L: 31.6mm/150mm/Internal
Saddle	Karbon Bikes House Saddle
Weight	41 lbs. / 18.64 kgs. (Size M)
Weight Limit	300 lbs. / 136 kgs. total weight limit, including bicycle, rider and cargo)

Any of the above product information is subject to change without notice. Due to supply chain issues, we reserve the right to substitute components at any time without notice.

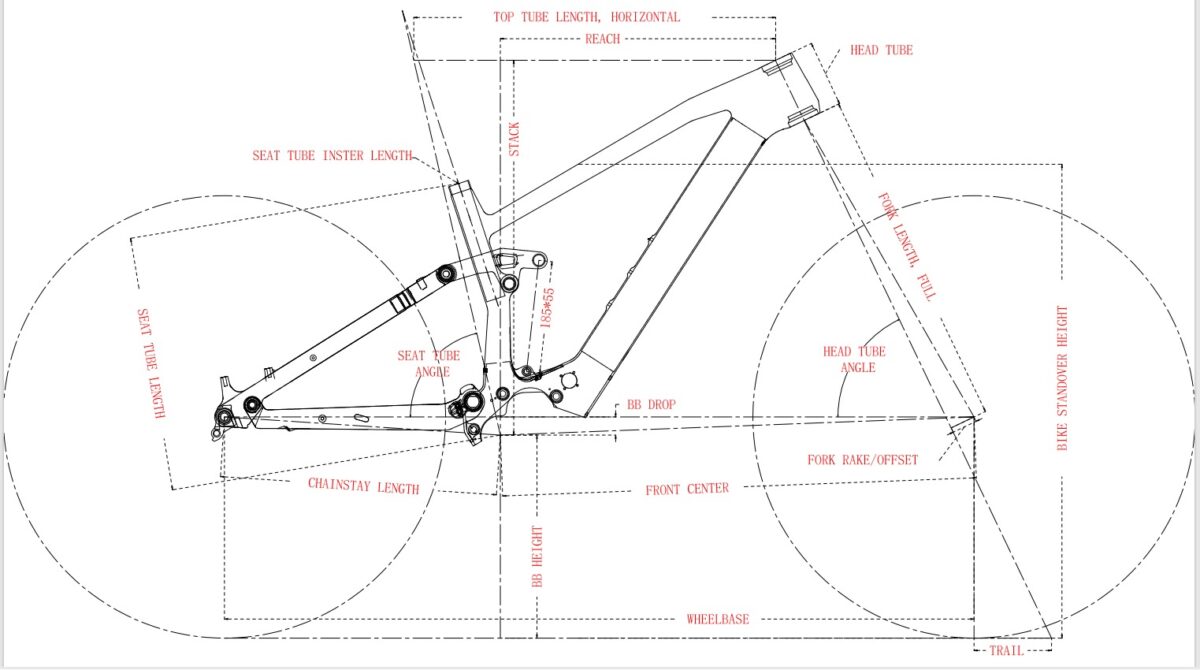

Karbon PowerLine SL Geometry

Measured Area	Small Measurements	Medium Measurements	Large Measurements
	S	M	L
Seatpost Insert Length	150mm	200mm	200mm
Reach	424mm	449.1mm	474.2mm
Top Tube Length, Horizontal	573.3mm	599.3mm	626.4mm
Stack	618.1mm	623.7mm	632.8mm
Wheelbase	1211.7mm	1238.3mm	1267.6mm
Chainstay Length	457mm	457mm	457mm
Front Center	761.8mm	788.9mm	818.2mm
BB Drop	25.7mm	25.7mm	25.7mm
BB Height	345mm	345mm	345mm
Seat Tube Angle	77°	77°	77°
Head Tube Angle	64°	64°	64°
Seat Tube Length	390mm	420mm	450mm
Head Tube Length	105mm	110mm	120mm
Bike Standover Heigh	786mm	807mm	829mm
Fork Rake/Offset	44mm	44mm	44mm
Fork Length, Full	576mm	576mm	576mm
Trail	128mm	128mm	128mm

Size	Rider Height
S	5.1" - 5.5" / 156cm - 165cm
M	5'5" -5'9" / 165cm - 175cm
L	5'9" - 6'1" / 175cm - 185cm

When choosing a frame, height is only one of several factors to consider. The other two equally important factors are the type of terrain and riding style. A larger size frame offers more stability, and gives you more room to move without upsetting the ride dynamics of the bike. A larger frame size will have a longer wheelbase putting the front wheel further ahead and making the bike feel more planted at higher speeds. On the other hand, a smaller size frame provides a more playful riding style and will feel more agile in tight corners.
