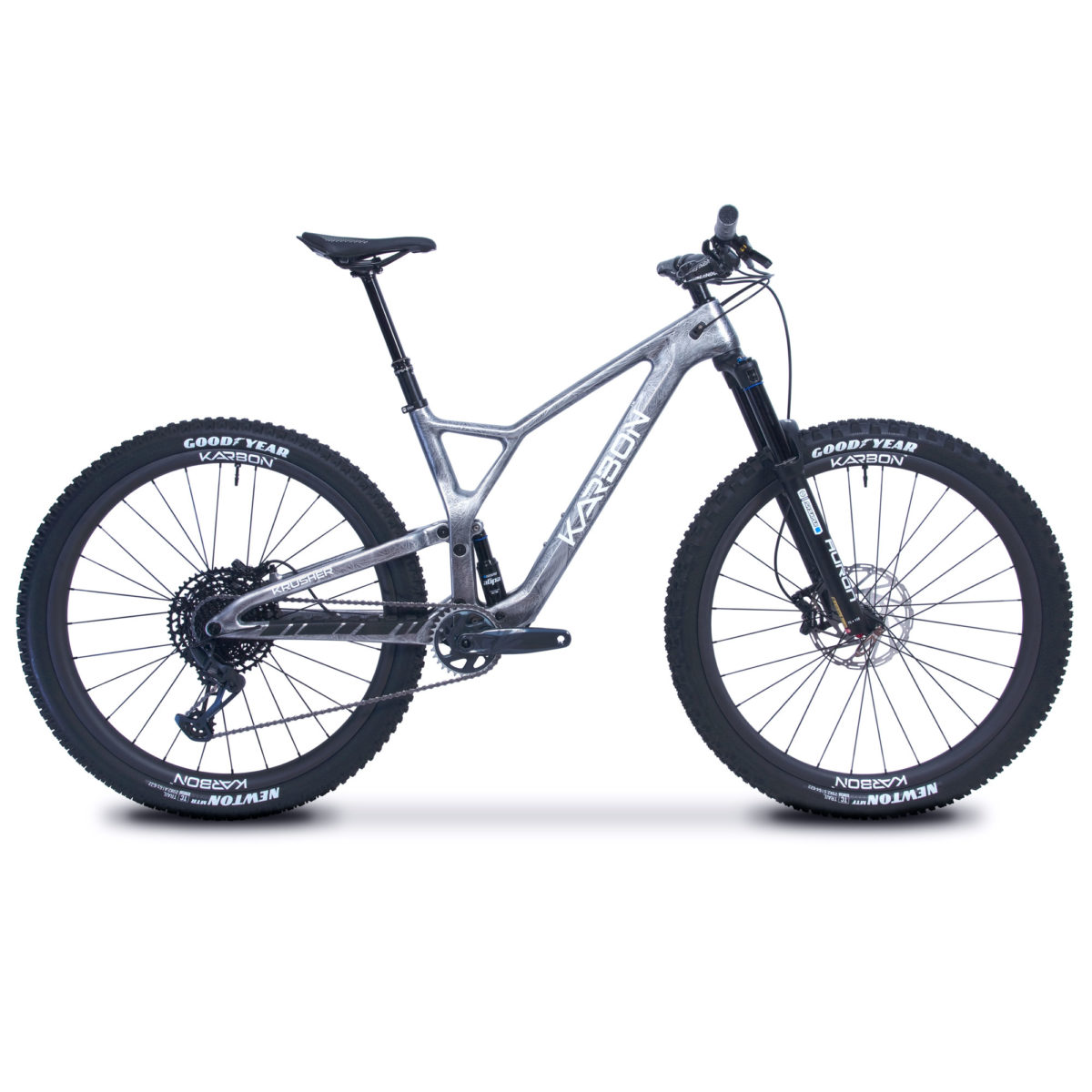

Krusher GX

$6,299.00

Features:

Spec	Description
Carbon Fiber Parts	Frame, wheels and handlebar
Wheel Size	29"
Front Travel	140mm
Rear Travel	130mm
Weight	30 lbs / 13.63 kg (L)

Krusher GX is one of the best modern trail bikes built for this new age of trail riding. Period! It will give you confidence when tackling big features and obstacles and get your adrenaline pumping when doing jumps, drops, berms and rock gardens. It features our incredibly stiff yet lightweight mid-travel trail carbon fiber frame, state of the art suspension technology courtesy of the latest RockShox Pike fork and Deluxe Ultimate rear shock. The drivetrain features the extremely durable and versatile SRAM GX Eagle system which combines greater durability and performance while maintaining a significant weight advantage over other drivetrains. The braking system features powerful and highly adjustable hydraulic 4-piston SRAM G2 RS brakes mated to 200mm front and 180mm rear rotors. Krusher GX also features our Karbon 2940 carbon fiber wheels with asymmetric rim design and 40mm outer width (34mm inner width) mated to Goodyear Newton Trail tubeless front and rear specific tires. All these state of the art specs will be at your fingertips through our sleek and lightweight Karbon MTB 35 Carbon Fiber Handlebar.

With the Karbon Krusher GX, you will be able to tackle the wildest and most technical trails without a flinch!

Krusher GX Technical Specifications

Part	Description

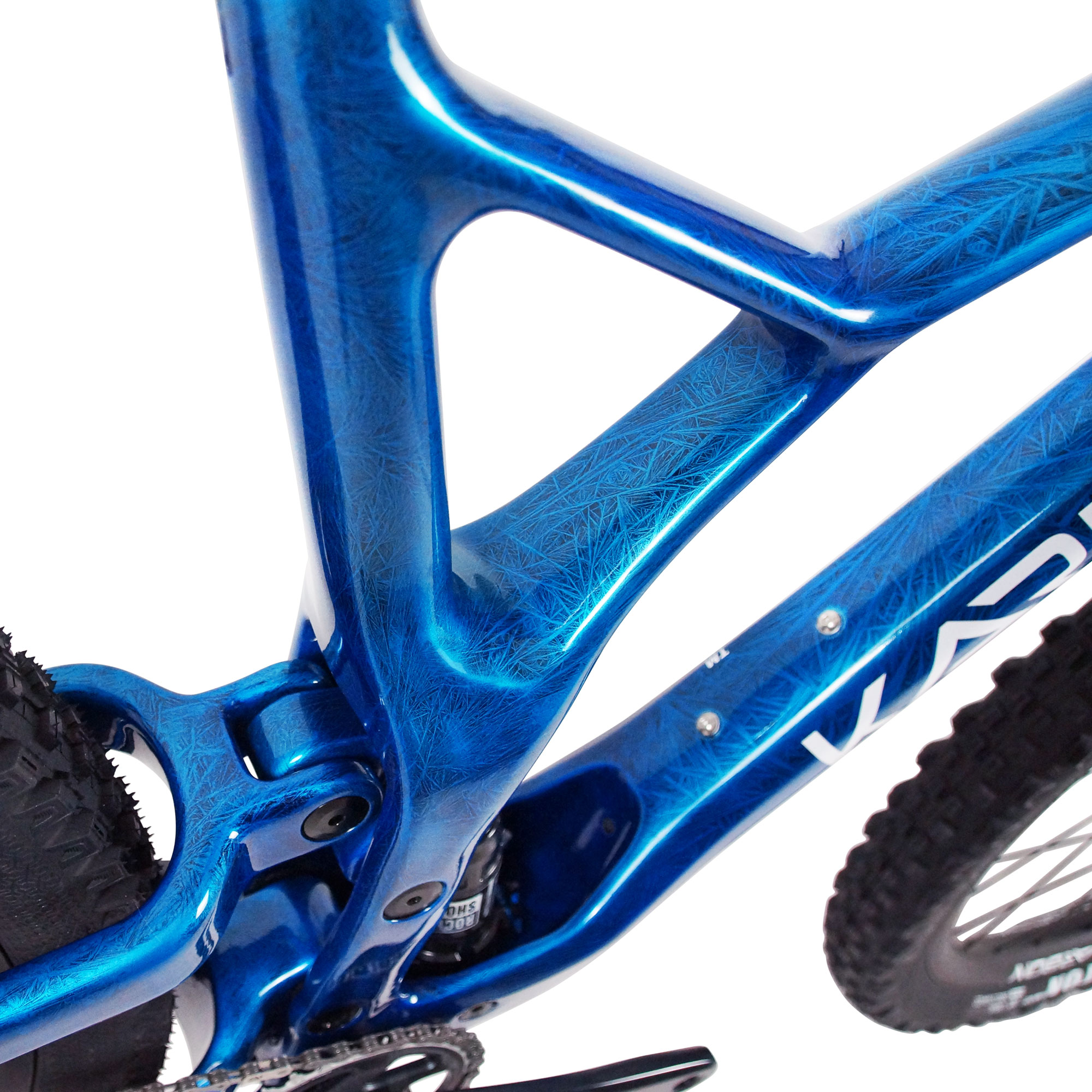

Frame	High modulus carbon fiber boost frame with internal cable routing, seatpost diameter 31.6mm (34.9 seat post clamp), Boost 148mm, 130mm travel

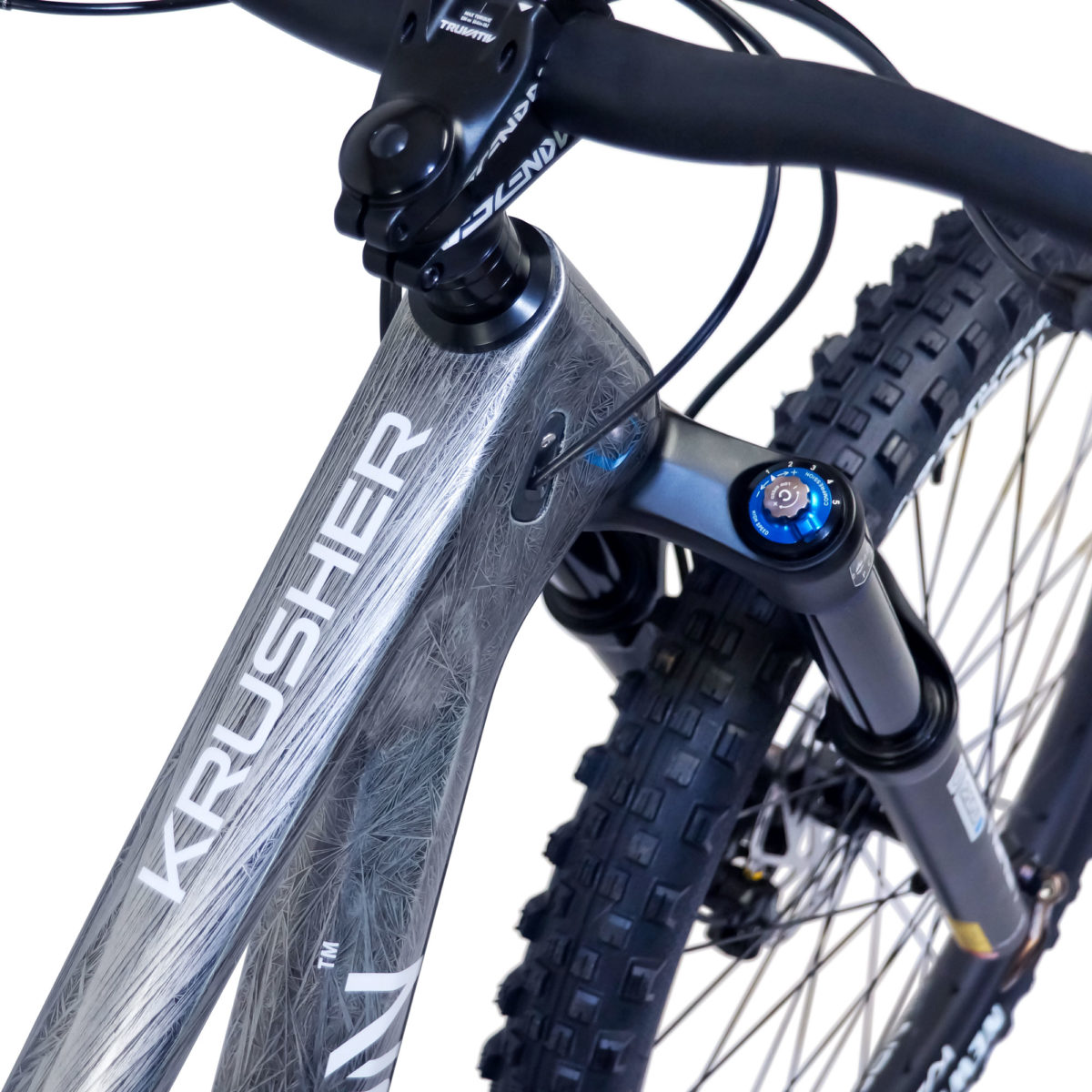

Fork	RockShox Pike Select, Charger RC damper, DebonAir+ dual position air spring, 15x110 Boost, Maxle Stealth, 140mm travel, tapered steerer, 44mm offset
Shock	RockShox Deluxe Ultimate RCT - (165X45), DebonAir+ air spring, Trunnion Standard

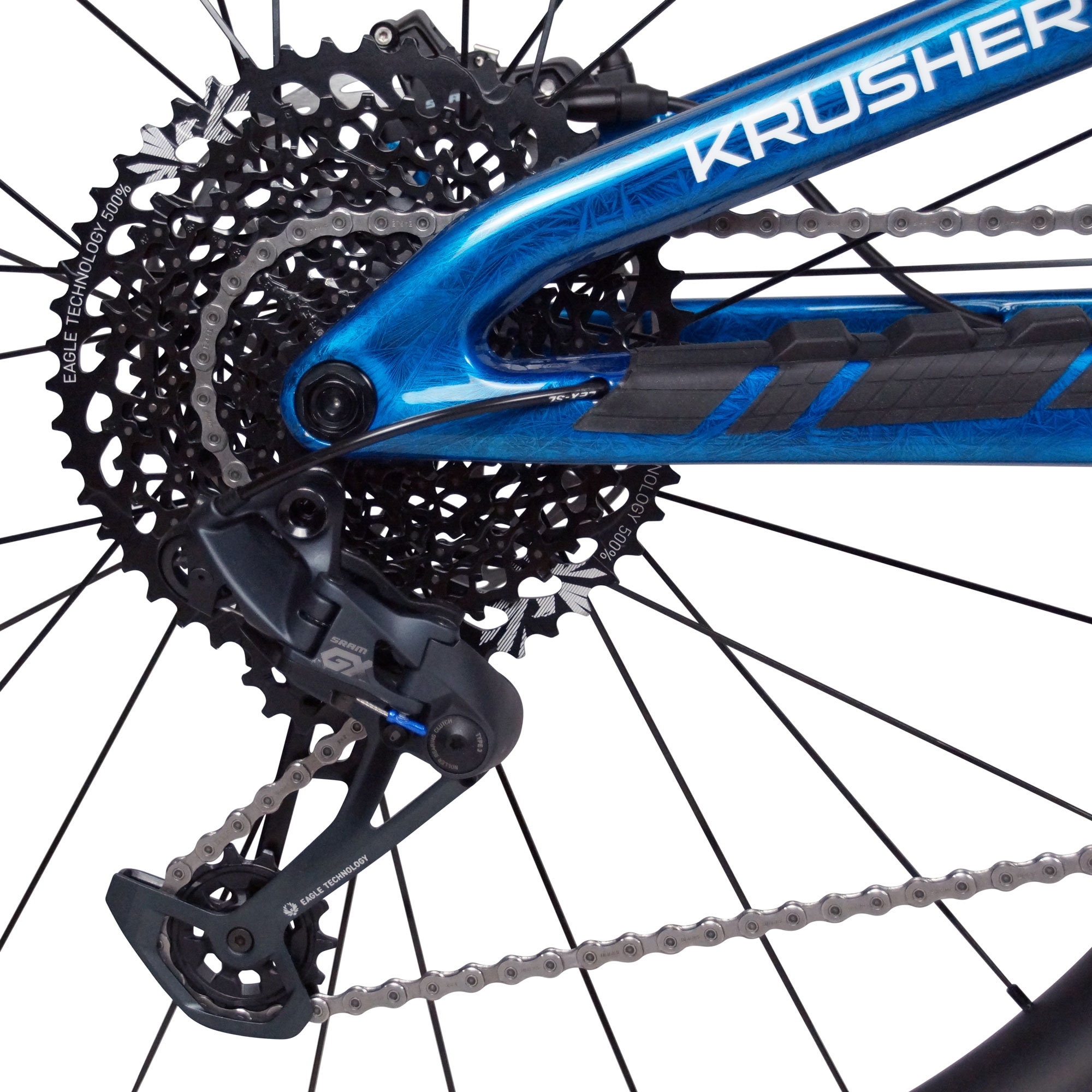

Rear Derailleur	SRAM GX Eagle 12 speed
Cassette	SRAM XG-1275 Eagle 10-50 12 Speed
Chain	SRAM GX Eagle, 12 Speed
Shifters	SRAM GX Eagle Trigger 12 speed w Discrete Clamp

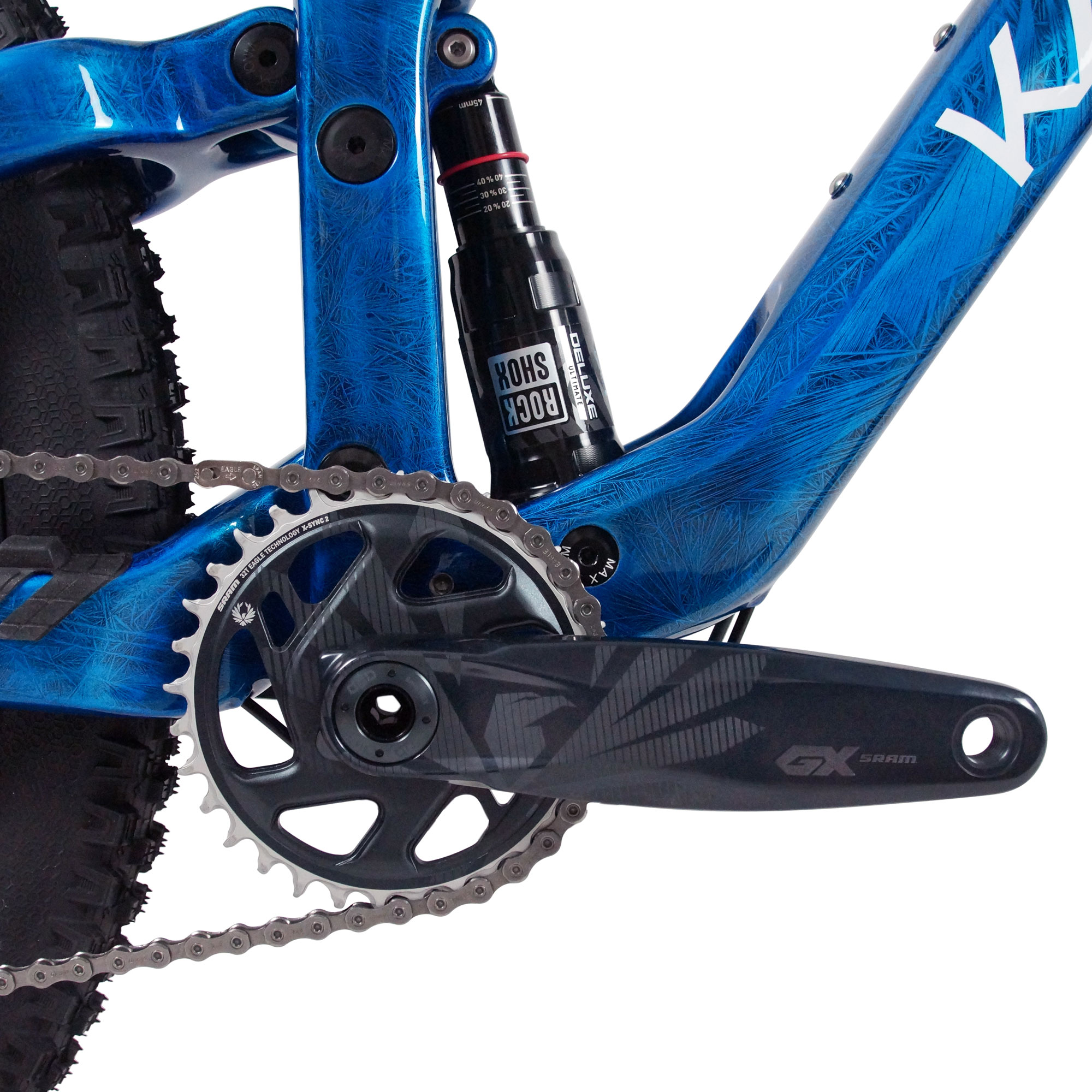

Crankset	SRAM GX Eagle Boost 148, 52mm chainline, DUB, 12 speed, 170mm length, 32T X-SYNC 2 Chainring
Max chainring size	32T
Bottom bracket	SRAM DUB, BSA 68/73mm

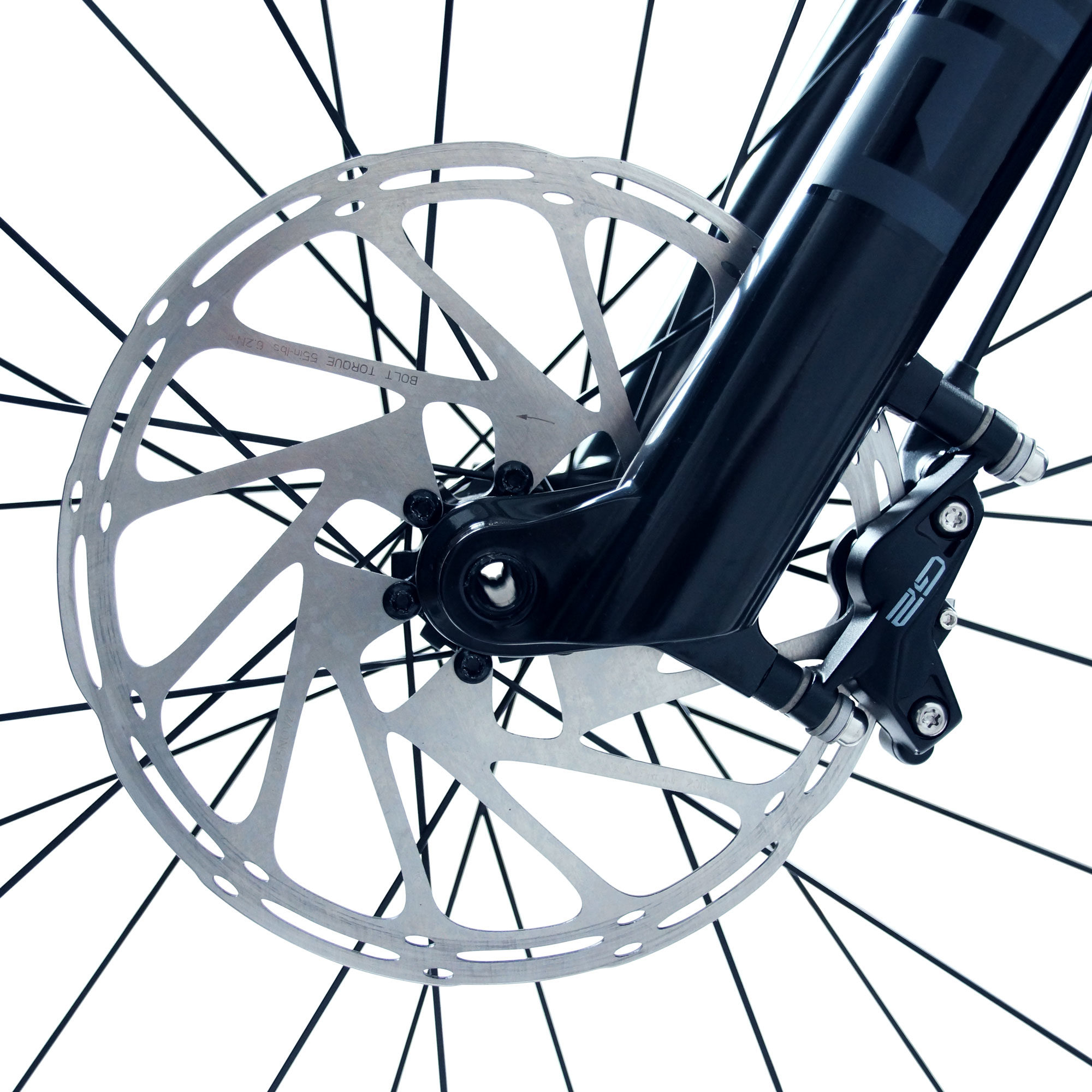

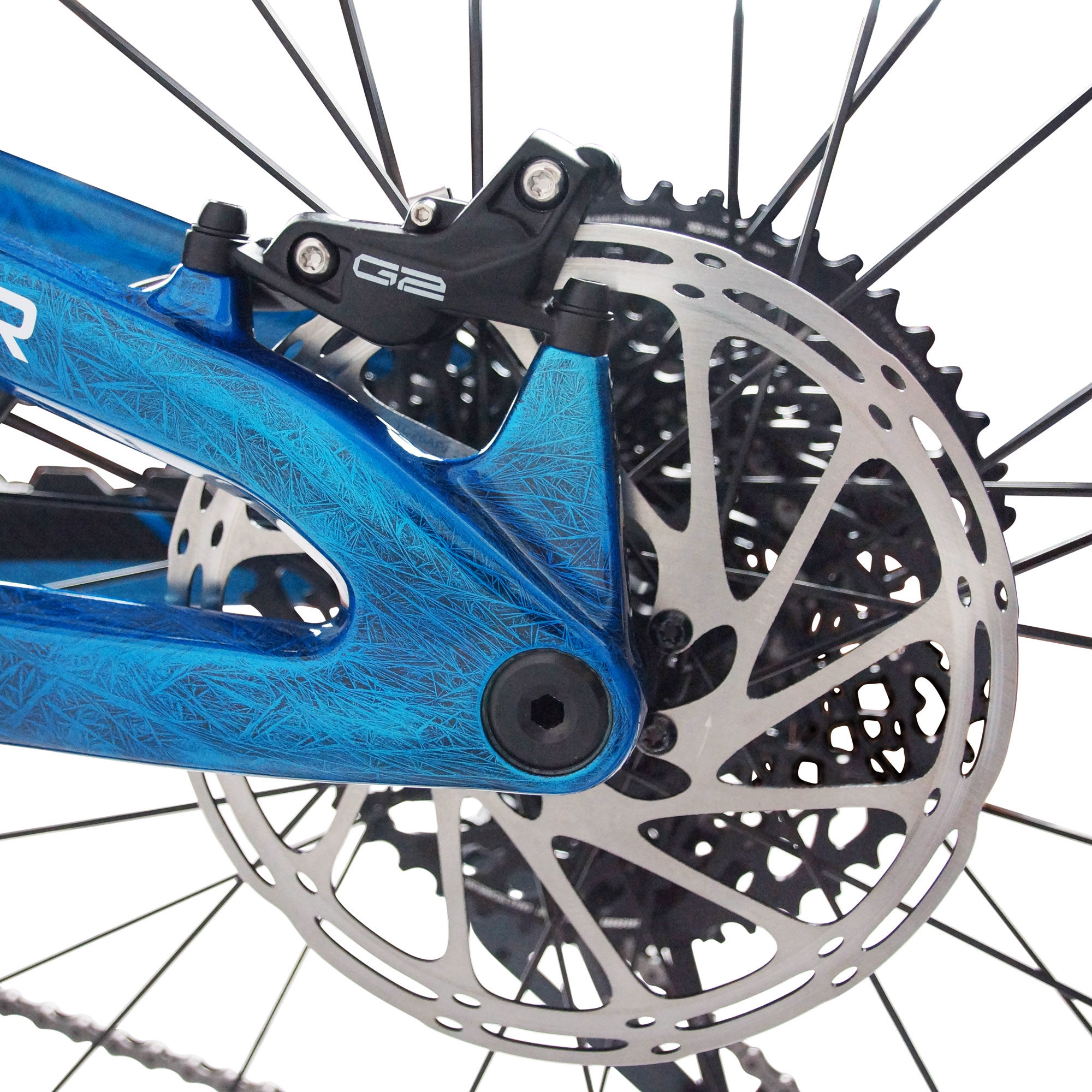

Brakes	SRAM G2 RS hydraulic disc brakes with 4 piston calipers
Brake Rotors	SRAM HS2 6-bolt Front: 200mm; Rear: 180mm
Handlebar	KARBON AM carbon fiber handlebar, 35mm, 800mm width, 5 degree upsweep, 9 degree backsweep, 25mm rise
Stem	Truvativ Stem Descendant, 0mm Rise, 35mm clamp, 50mm Length
Grips	Truvativ Descendant Black Single Locking
Front Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, Boost 110 mm, 15mm thru axle

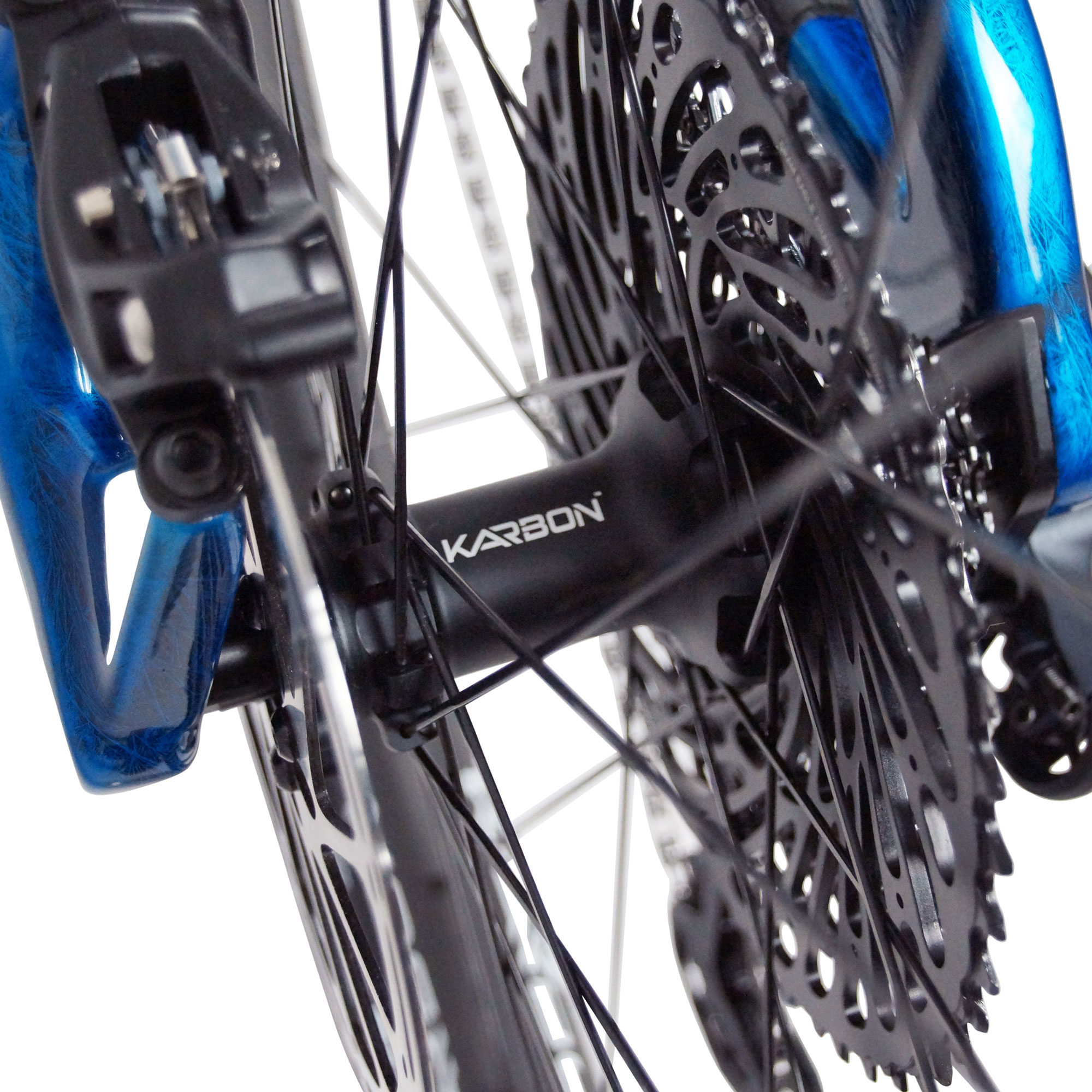

Rear Wheel	KARBON All Mountain / Enduro 2940 Carbon Fiber, Asymetric Design, 40mm outer width (34mm inner width), Tubeless Ready, 6-bolt, SRAM XD driver, Boost 148 mm, 12mm thru axle
Front Tire	Goodyear Newton MTF Trail, Tubeless Complete, dual density compound, 1x60 TPI casing, 29x2.50
Rear Tire	Goodyear Newton MTR Trail, Tubeless Complete, dual density compound, 1x60 TPI casing, 29x2.40
Seat Post	TranzX Kitzuma Air, Size M: 31.6mm/150mm/Internal; Size L: 31.6mm/170mm/Internal
Saddle	Karbon Bikes House Saddle
Weight	30 lbs. / 13.63 kgs. (Size L)
Weight Limit	300 lbs. / 136 kgs. total weight limit, including bicycle, rider and cargo)

Any of the above product information is subject to change without notice. Due to supply chain issues, we reserve the right to substitute components at any time without notice.

Karbon Krusher Geometry Illustration

Measured Area	Medium Measurements	Large Measurements
Krusher	M	L
Seatpost Insert Length	170mm	200mm
Reach	435.3mm	465.3mm
Top Tube Length, Horizontal	591.3mm	625.8mm
Stack	605.4mm	623.5mm
Wheelbase	1174.3mm	1210.3mm
Chainstay Length	444.8mm	444.8mm
Front Center	736mm	772mm
BB Drop	32.5mm	32.6mm
BB Height	339mm	339mm
Seat Tube Angle	75.6°	75.6°
Head Tube Angle	66.6°	66.6°
Seat Tube Length	440mm	480mm
Head Tube Length	95mm	110mm
Bike Standover Heigh	731.4mm	732.8mm
Fork Rake/Offset	44mm	44mm
Fork Length, Full	551mm	551mm
Trail	104mm	104mm

Size	Rider Height
M	5'5" -5'9" / 165cm - 175cm
L	5'9" - 6'1" / 175cm - 185cm

When choosing a frame, height is only one of several factors to consider. The other two equally important factors are the type of terrain and riding style. A larger size frame offers more stability, and gives you more room to move without upsetting the ride dynamics of the bike. A larger frame size will have a longer wheelbase putting the front wheel further ahead and making the bike feel more planted at higher speeds. On the other hand, a smaller size frame provides a more playful riding style and will feel more agile in tight corners.
