Azur Frameset

$1,499.00

Features:

Spec	Description
Frame Material	High Modulus Carbon Fiber Frame
Compatible Wheel Size	27.5", 29"
Front Travel	100mm, 110mm, 120mm
Weight	2.57 lbs / 1,170 g (M)

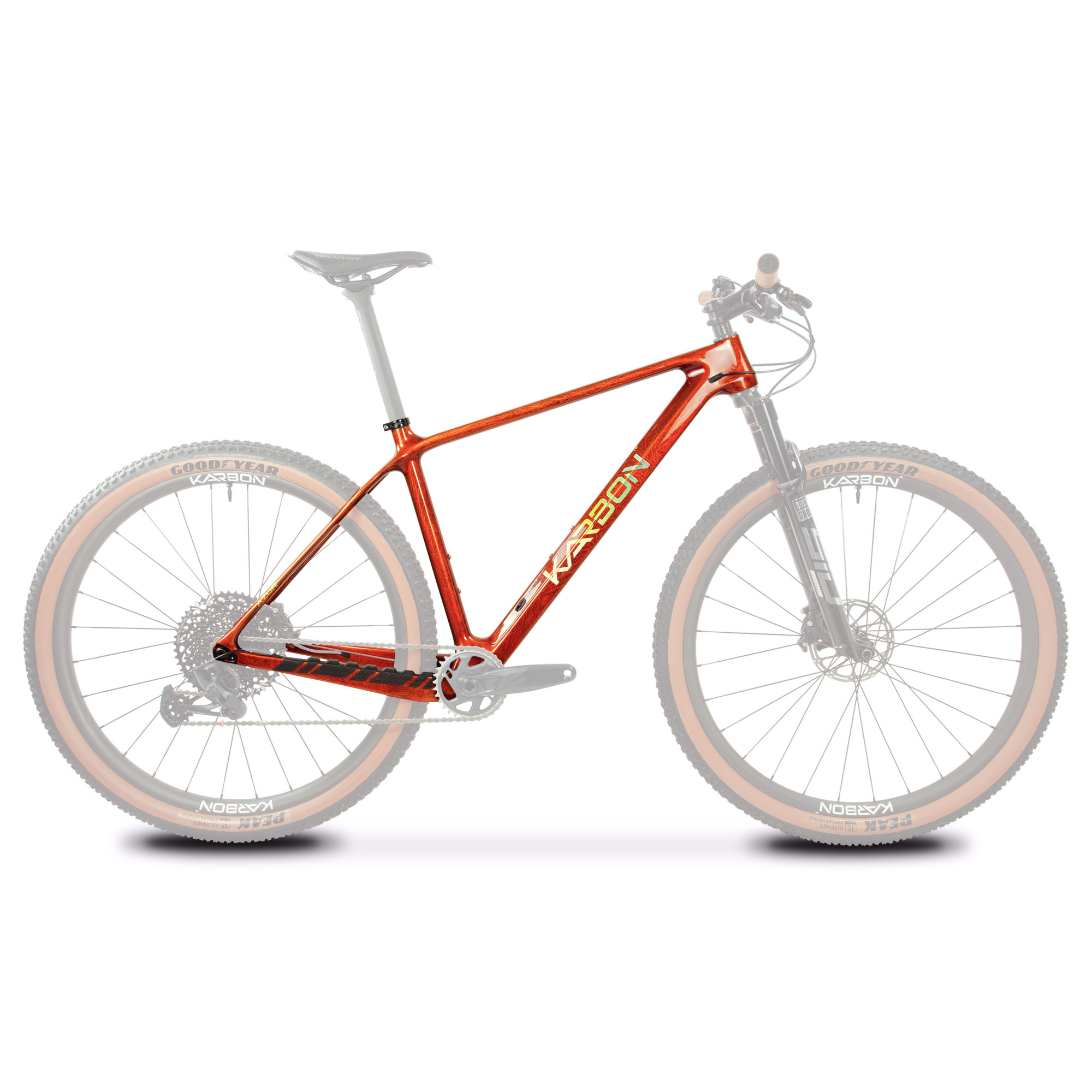

Discover the Azur XC Hardtail Mountain Bike Frameset – a pinnacle of modern cross-country racing design. This frameset is the foundation of the highly acclaimed Azur, a bike that is redefining what a hardtail XC race bike can be. It’s tailored for racers and enthusiasts who demand a bike that excels in speed, precision, and agility on today’s demanding race courses.

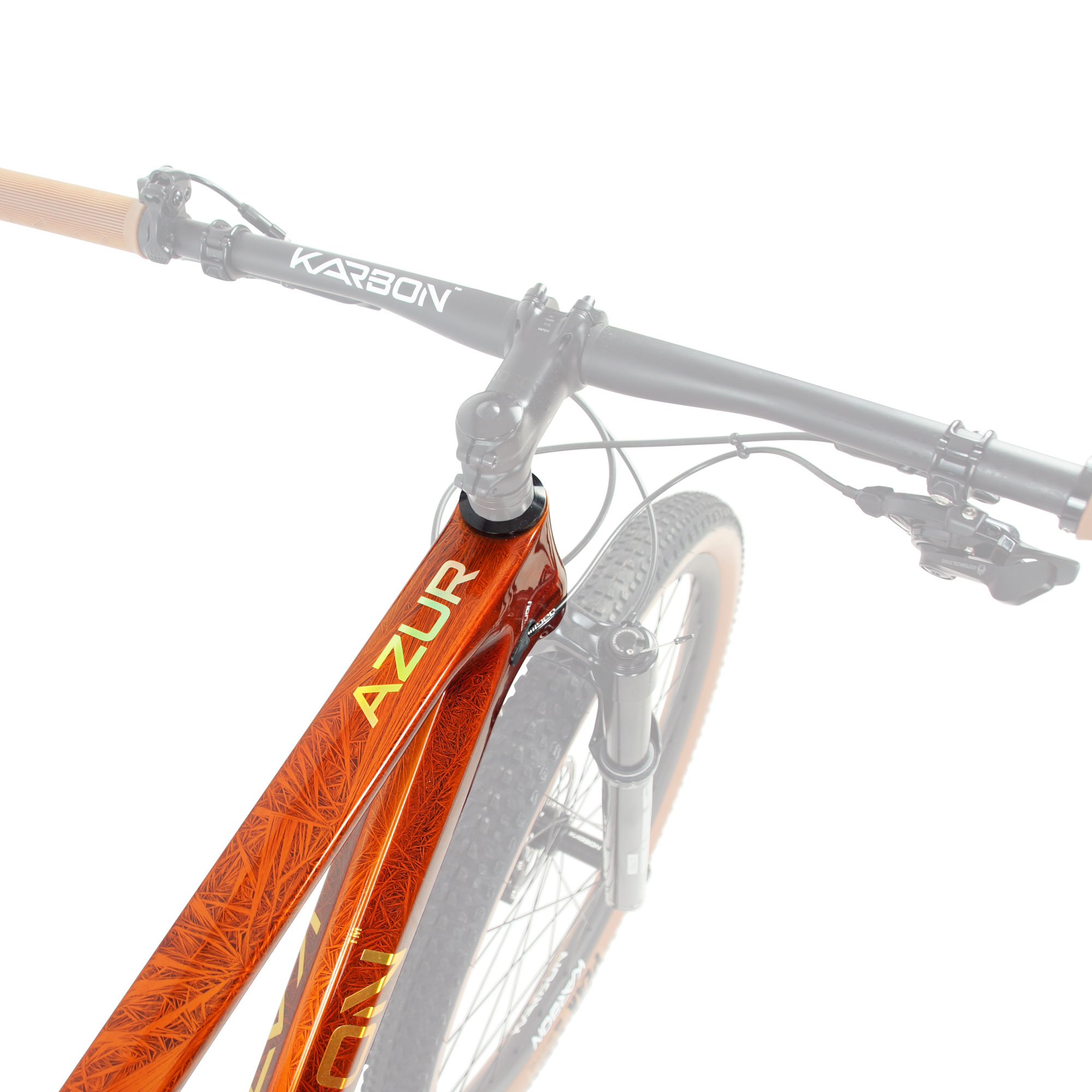

At the heart of this frameset is our hardtail carbon fiber frame, a 2.57 lbs. / 1.17 kg marvel of engineering that strikes a perfect balance between incredible stiffness and featherlight weight. This frame is the essence of what makes the Azur a standout racer: it provides the razor-sharp handling and responsive feel essential for navigating tight singletracks and transferring power efficiently on climbs.

The frameset is designed to accommodate XC forks with 100mm, 110mm or 120mm of travel for an unparalleled control and smoothness over rough and technical race tracks.

The frameset is also optimized for pairing with our Karbon 2933 carbon fiber wheels. The asymmetric rim design, with a 33mm outer width and 26mm inner width, guarantees a wheel setup that is both robust and agile, enhancing your control and speed on challenging XC courses.

This frameset is not just a component; it’s the canvas for building a world-class XC racing bike. Whether you’re tackling steep climbs, navigating technical descents, or aiming for the podium, the Azur XC Hardtail Frameset is your first step towards achieving those racing dreams. It’s your ticket to tackling the most challenging race courses and reaching new heights in your XC endeavors!

Azur Frameset Technical Specifications

Part	Description
Frame	High modulus carbon fiber boost frame with internal cable routing, seatpost diameter 27.2mm (31.8 seat post clamp), Boost 148mm
Max chainring size	36T
Bottom bracket	PressFit 92mm
Weight	2.57 lbs / 1,170 g (Size M)
Weight Limit	300 lbs. / 136 kgs. total weight limit, including bicycle, rider and gear)

Any of the above product information is subject to change without notice. Due to supply chain issues, we reserve the right to substitute components at any time without notice.

Karbon Azur Geometry Illustration

Measured Area	Small Measurements	Medium Measurements	Large Measurements
	S	M	L
Seatpost Insert Length	180mm	180mm	200mm
Reach	405mm	430mm	453mm
Top Tube Length, Horizontal	570mm	596mm	622mm
Stack	599mm	604mm	613mm
Wheelbase	1,102mm	1,129mm	1,156mm
Chainstay Length	438mm	438mm	438mm
Front Center	669mm	696mm	723mm
BB Drop	60mm	60mm	60mm
BB Height	313mm	313mm	313mm
Seat Tube Angle	74.6°	74.6°	74.6°
Head Tube Angle	69°	69°	69°
Seat Tube Length	393mm	418mm	458mm
Head Tube Length	90mm	95mm	105mm
Bike Standover Heigh	704mm	723mm	753mm
Fork Rake/Offset	44mm	44mm	44mm
Fork Length, Full	506mm	506mm	506mm
Trail	88mm	88mm	88mm

Size	Rider Height
M	5'5" -5'9" / 165cm - 175cm
L	5'9" - 6'1" / 175cm - 185cm

When choosing a frame, height is only one of several factors to consider. The other two equally important factors are the type of terrain and riding style. A larger size frame offers more stability, and gives you more room to move without upsetting the ride dynamics of the bike. A larger frame size will have a longer wheelbase putting the front wheel further ahead and making the bike feel more planted at higher speeds. On the other hand, a smaller size frame provides a more playful riding style and will feel more agile in tight corners.
